Experiment
UV Raman spectrum (λ = 244 nm, Mid-IR range) of 15 terrestrial coals and 3 type II kerogens
- Title

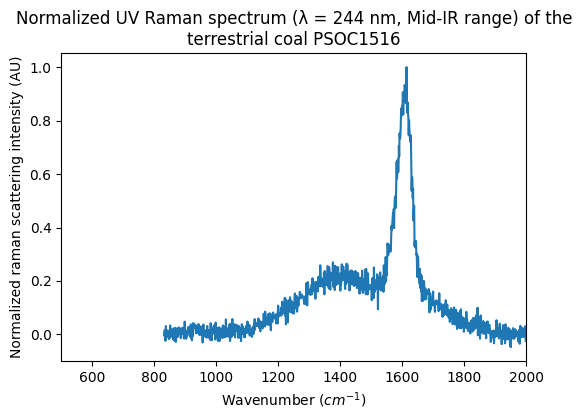

- Normalized UV Raman spectrum (λ = 244 nm, Mid-IR range) of the terrestrial coal PSOC1516
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized Raman scattering intensity
- Version
- #1 (2020-04-14 17:09:29 UTC+0000)
- Instrument
- labRAM HR800 micro-Raman UV - 244nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 4000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- PSOC1516
- Origin
- natural terrestrial
- Texture
- individual grains
- Thickness
- 15.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Irradiated by
-
- UV photons
References
- Data reference
- Quirico, Eric; Montagnac, Gilles (2006): UV Raman spectrum (λ = 244 nm, Mid-IR range) of 15 terrestrial coals and 3 type II kerogens. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200414_001
