Experiment
Baseline corrected, average and normalized MIR transmission spectra of matrix fragments of UOC chondrites, pressed on diamonds under vacuum and at several temperatures
Sub-Experiment
ALHA76004 (LL(L)3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of ALHA76004 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of ALHA76004 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
BTN00302 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of BTN00302 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of BTN00302 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
EET83248 (H3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET83248 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET83248 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
EET90066 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET90066 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET90066 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
EET90628 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET90628 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET90628 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
EET96188 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET96188 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET96188 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
GRO06054 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of GRO06054 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of GRO06054 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
GRO95504 (L3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of GRO95504 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of GRO95504 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
LEW87248 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of LEW87248 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of LEW87248 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
LEW87284 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of LEW87284 pressed on diamond window under vacuum and at temperature T = 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of LEW87284 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
MCY05218 (L3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of MCY05218 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of MCY05218 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
QUE97008 (L3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of QUE97008 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of QUE97008 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
RBT04251 (LL3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of RBT04251 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of RBT04251 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
TIL82048 (LL(L)3) T= 100°C and 300°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of TIL82408 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of TIL82408 pressed on diamond window under vacuum and at temperature T = 300°C
Sub-Experiment
A881607 (LL3) T= 120°C and 250°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of A881607 pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of A881607 pressed on diamond window under vacuum and at temperature T = 100°C
Sub-Experiment
Bishunpur (LL3) T= 120°C and 250°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of Bishunpur pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of Bishunpur pressed on diamond window under vacuum and at temperature T = 100°C
Sub-Experiment
Semarkona (LL3) T= 120°C and 250°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of Semarkona pressed on diamond window under vacuum and at temperature T = 100°C
Spectrum
Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of Semarkona pressed on diamond window under vacuum and at temperature T = 100°C
- Title

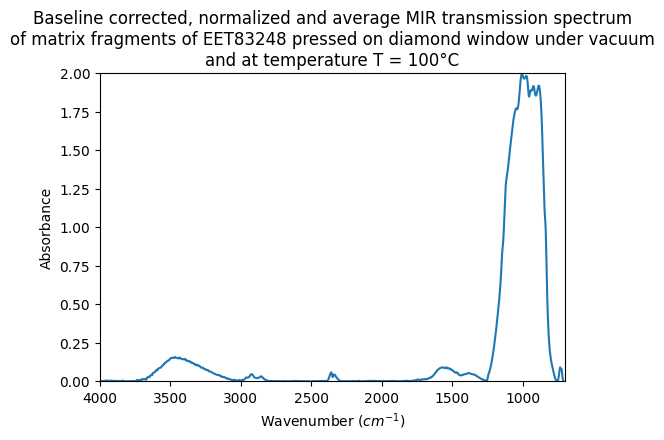

- Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of EET83248 pressed on diamond window under vacuum and at temperature T = 100°C
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2022-10-13 16:33:02 UTC+0000)
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 600.0 - 4000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- EET83248 matrix grains (UOC) heated at 100°C
- Origin
- extraterrestrial
- Texture
- individual grains
- Thickness
- 15.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 100.0 $\pm$ 1.0 $^{\circ}C$
References
- Data reference
- Eschrig, Jolantha; Bonal, Lydie; Vacher, Lionel (2018): Baseline corrected, average and normalized MIR transmission spectra of matrix fragments of UOC chondrites, pressed on diamonds under vacuum and at several temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20221013_001
