- Title

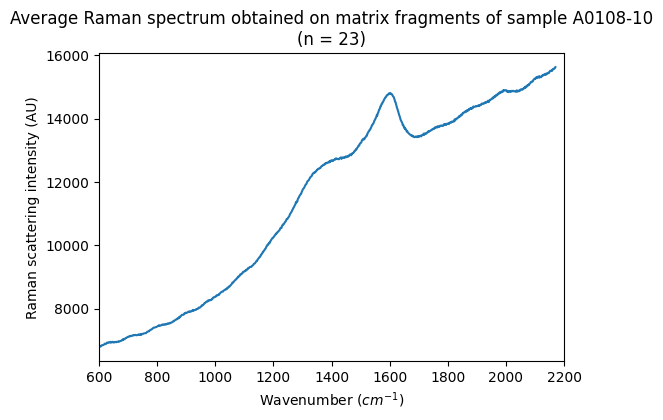

- Average Raman spectrum obtained on matrix fragments of sample A0108-10 (n = 23)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- Raman scattering intensity
- Version
- #1 (2022-11-02 13:52:23 UTC+0000)
- Instrument
- Micro-Raman LabRam HR800 - 532 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 555.0 - 2170.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- A0108_10
- Texture
- individual grains
- Thickness
- 10.0 $\pm$ 10.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Fluid
- Irradiated by
-
- Vis photons
References
- Data reference
- Bonal, Lydie; Montagnac, Gilles (2021): Average Raman spectra (λ = 532 nm) obtained on fragments of individual particles and aggregates from Chamber A and Chamber C Ryugu samples (Hayabusa2 mission). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20221102_001
