- Title

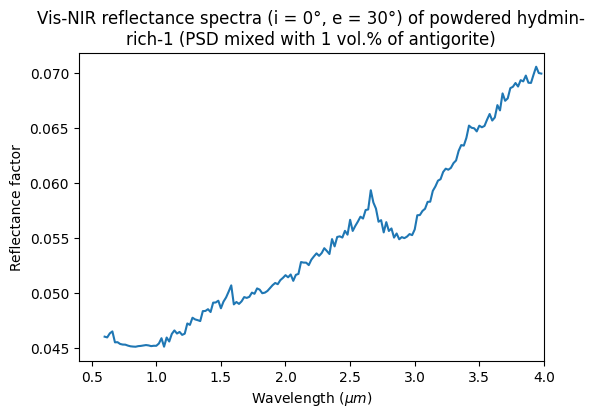

- Vis-NIR reflectance spectra (i = 0°, e = 30°) of powdered hydmin-rich-1 (PSD mixed with 1 vol.% of antigorite)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2024-07-14 19:06:50 UTC+0000)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.6 - 0.68 ${\mu}m$ ; 0.7 - 1.58 ${\mu}m$ ; 1.6 - 2.82 ${\mu}m$ ; 2.84 - 4.2 ${\mu}m$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- hydmin-rich-1
- Texture
- loose granular
- Thickness
- 2.0 $\pm$ 0.1 $mm$
- Temperature
- 297.0 $\pm$ 1.0 $K$
References
- Data reference
- Wargnier, Antonin; Poch, Olivier; Beck, Pierre (2022): Vis-NIR reflectance spectra (i=0°, e=30°, az=0°) of Phobos simulants (silicates, organics, pure and mixed). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20240713_001
