Spectrum preview
Title

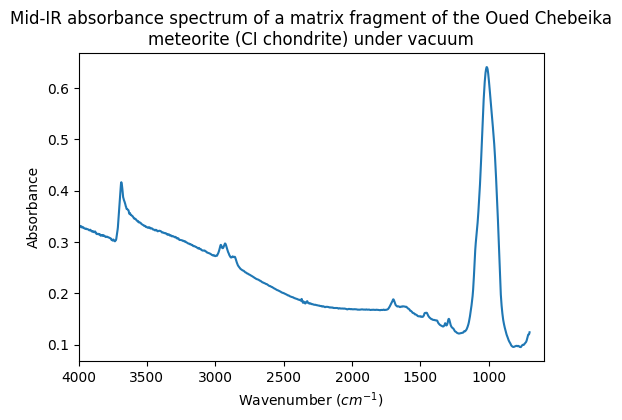

Mid-IR absorbance spectrum of a matrix fragment of the Oued Chebeika meteorite (CI chondrite) under vacuum
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2025-01-08 13:30:19 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
600.0 - 4000.0 cm1
Spatial observation mode
single spot
Sample preview
Name
OC002 matrix fragments
Texture
individual grains
Thickness
10.0 ± 10.0 μm
Temperature
22.0 ± 2.0 C
References
Data reference
Bonal, Lydie; Beck, Pierre; Poch, Olivier (2024): Vis-NIR and Mid-IR reflectance spectra, Mid-IR transmission and Raman spectra of several preparations of the Oued Chebeika 002 meteorite (CI chondrite). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20241211_001
