- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Spectral observation mode

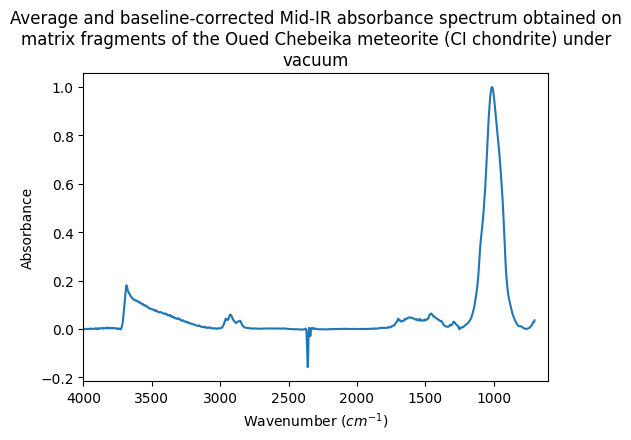

- spectrum
- Valid spectral range(s)
- 600.0 - 4000.0 cm−1
- Spatial observation mode
- single spot
- Name
- OC002 matrix fragments
- Texture
- individual grains
- Thickness
- 10.0 ± 10.0 μm
- Temperature
- 22.0 ± 2.0 ∘C
References
- Data reference
- Bonal, Lydie; Beck, Pierre; Poch, Olivier (2024): Vis-NIR and Mid-IR reflectance spectra, Mid-IR transmission and Raman spectra of several preparations of the Oued Chebeika 002 meteorite (CI chondrite). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20241211_001
