Spectrum preview
Title

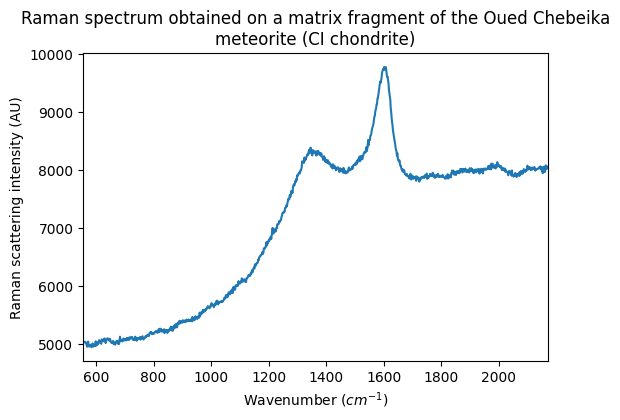

Raman spectrum obtained on a matrix fragment of the Oued Chebeika meteorite (CI chondrite)
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2025-01-08 13:30:19 UTC+0000)
Instrument parameters
Instrument
Micro-Raman LabRam HR800 - 532 nm
Spectral observation mode
spectrum
Valid spectral range(s)
555.0 - 2171.0 cm1
Observation geometry
confocal : i=0.0° ; e=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
OC002 matrix fragments
Texture
individual grains
Thickness
10.0 ± 5.0 μm
Temperature
22.0 ± 2.0 C
References
Data reference
Bonal, Lydie; Beck, Pierre; Poch, Olivier (2024): Vis-NIR and Mid-IR reflectance spectra, Mid-IR transmission and Raman spectra of several preparations of the Oued Chebeika 002 meteorite (CI chondrite). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20241211_001
