- Instrument
- Micro-Raman LabRam HR800 - 532 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 555.0 - 2171.0
- Observation geometry
- confocal : i=0.0° ; e=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name

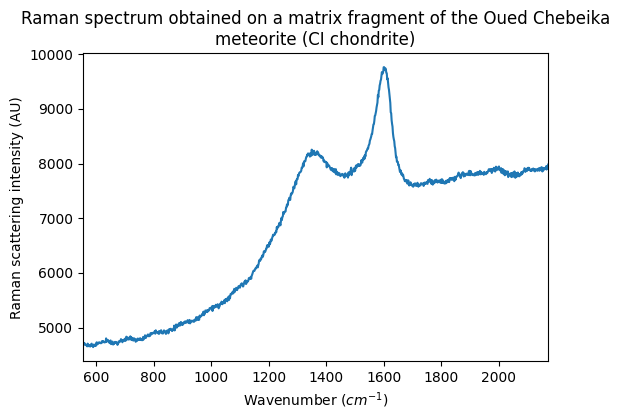

- OC002 matrix fragments
- Texture
- individual grains
- Thickness
- 10.0 5.0
- Temperature
- 22.0 2.0
References
- Data reference
- Bonal, Lydie; Beck, Pierre; Poch, Olivier (2024): Vis-NIR and Mid-IR reflectance spectra, Mid-IR transmission and Raman spectra of several preparations of the Oued Chebeika 002 meteorite (CI chondrite). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20241211_001
