Spectrum preview
Title

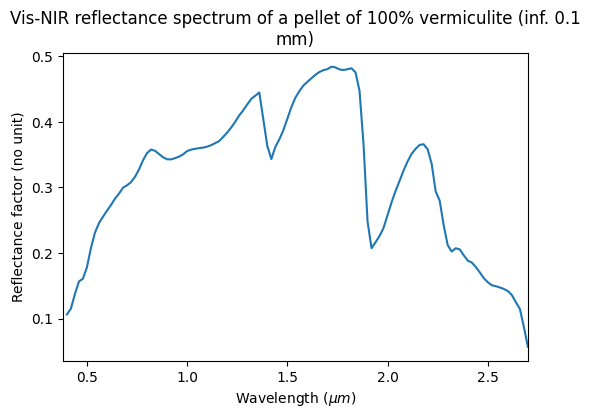

Vis-NIR reflectance spectrum of a pellet of 100% vermiculite (inf. 0.1 mm)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2022-03-03 09:58:24+0000 UTC)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.38 - 0.66 μm ; 0.68 - 1.48 μm ; 1.5 - 2.7 μm
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
vermiculite (inf. 0.1 mm) pellet
Texture
compact fine grained
Thickness
0.8 mm
Temperature
20.0 ± 10.0 C
References
Data reference
Mandon, Lucia; Beck, Pierre (2020): Vis-NIR reflectance spectra of pellets of olivine (0.1-1 mm) and vermiculite (inf. 0.1 mm) mixtures. SSHADE/ROMA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LM_20220302_OLVE
