- Title

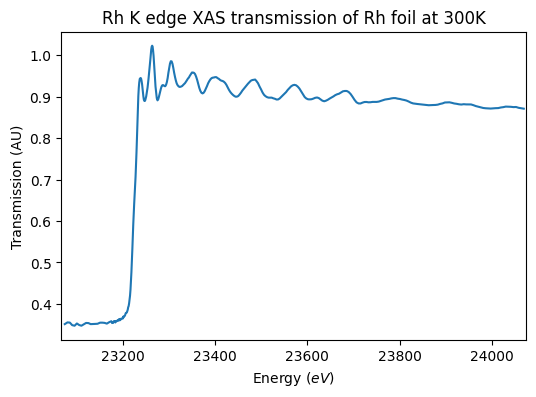

- Rh K edge XAS transmission of Rh foil at 300K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2024-10-07 07:03:57 UTC+0000)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 23066.0 - 24075.0 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Rh metallic foil
- Origin
- commercial
- Texture
- compact
- Temperature
- 300.0 $\pm$ 5.0 $K$
- Pressure
- 1.0 $bar$
References
- Data reference
- Proux, Olivier; Aguilar Tapia, Antonio (2017): Rh K edge XAS transmission of Rh compounds at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20170316_001
