Spectrum preview
Title

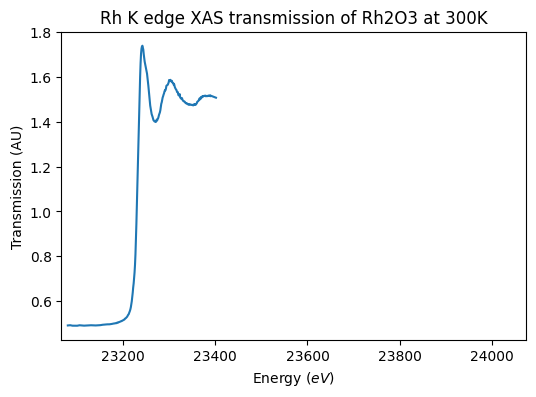

Rh K edge XAS transmission of Rh2O3 at 300K
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2024-10-07 07:03:57 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
23066.0 - 24075.0 $eV$
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of Rh2O3 mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
300.0 $\pm$ 278.15 $K$
Pressure
1.0 $bar$
References
Data reference
Proux, Olivier; Aguilar Tapia, Antonio (2017): Rh K edge XAS transmission of Rh compounds at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20170316_001
