- Title

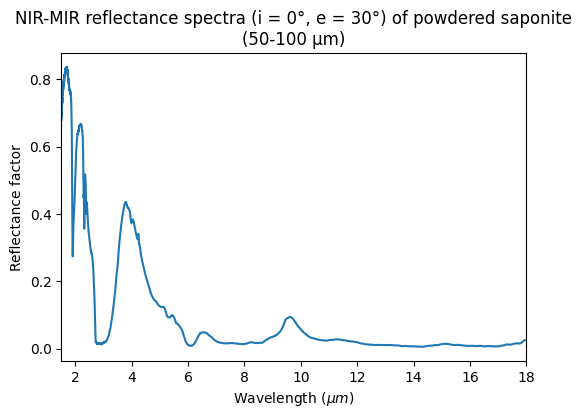

- NIR-MIR reflectance spectra (i = 0°, e = 30°) of powdered saponite (50-100 μm)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2024-07-17 14:05:06 UTC+0000)
- Instrument
- Brucker Vertex 70 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1.5 - 18.0 ${\mu}m$
- Observation geometry
- biconical : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- saponite
- Texture
- loose granular
- Thickness
- 2.0 $\pm$ 0.1 $mm$
- Temperature
- 297.0 $\pm$ 1.0 $K$
References
- Data reference
- Wargnier, Antonin; Poch, Olivier; Beck, Pierre (2022): NIR-MIR reflectance spectra (i=0°, e=30°, az=0°) of phyllosilicates and Phobos simulants (mixed silicates and coals). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20240717_001
