Spectrum preview
Title

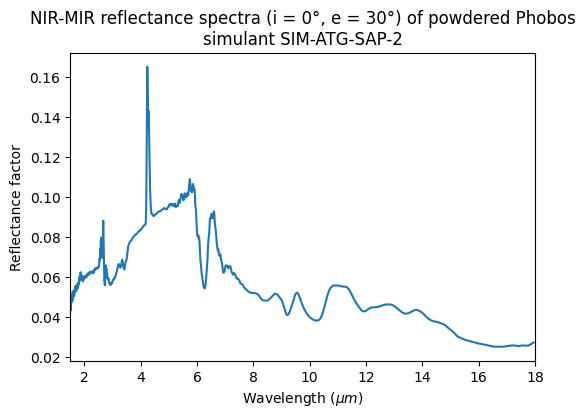

NIR-MIR reflectance spectra (i = 0°, e = 30°) of powdered Phobos simulant SIM-ATG-SAP-2
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2024-07-17 14:05:06 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
1.5 - 18.0 ${\mu}m$
Observation geometry
biconical : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
SIM-ATG-SAP-2
Texture
loose granular
Thickness
2.0 $\pm$ 0.1 $mm$
Temperature
297.0 $\pm$ 1.0 $K$
References
Data reference
Wargnier, Antonin; Poch, Olivier; Beck, Pierre (2022): NIR-MIR reflectance spectra (i=0°, e=30°, az=0°) of phyllosilicates and Phobos simulants (mixed silicates and coals). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20240717_001
