Spectrum preview

Title

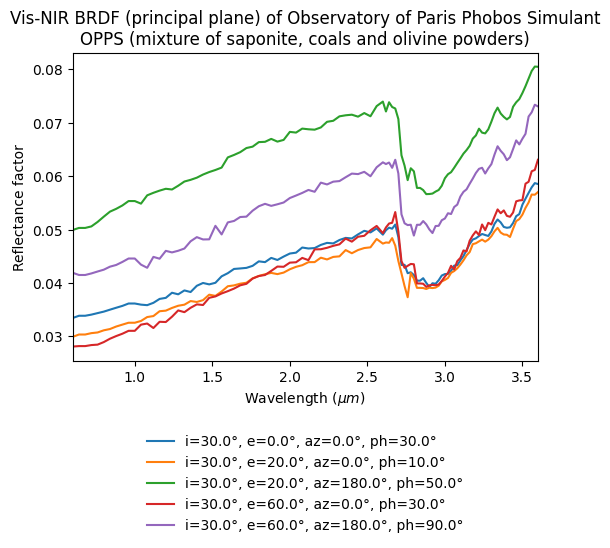

Vis-NIR BRDF (principal plane) of Observatory of Paris Phobos Simulant OPPS (mixture of saponite, coals and olivine powders)

Database

Experiment type

laboratory measurement

Spectrum type

reflectance factor

Version

#1 (2024-08-19 09:57:16 UTC+0000)

Instrument parameters

Instrument: SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode: spectrum
Valid spectral range(s): 0.6 - 0.68 ${\mu}m$ ; 0.7 - 1.58 ${\mu}m$ ; 1.6 - 2.82 ${\mu}m$ ; 2.84 - 3.6 ${\mu}m$
Observation geometry: bidirectional :
Angle observation mode: two variable angles
Spatial observation mode: single spot

Sample preview

Name: OPPS (Observatory of Paris Phobos Simulant
Texture: loose granular
Thickness: 2.0 $\pm$ 0.1 $mm$
Temperature: 297.0 $\pm$ 1.0 $K$

References

Data reference: Wargnier, Antonin; Poch, Olivier; Beck, Pierre (2023): Vis-NIR BRDF (principal plane) of Phobos regolith simulants OPPS and UTPS-TB. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20240717_002
