Spectrum preview
Title

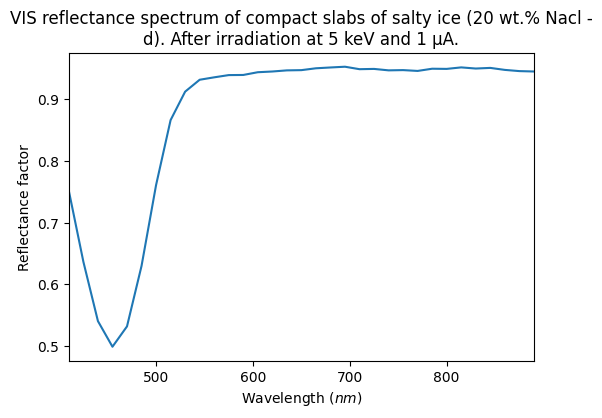

VIS reflectance spectrum of compact slabs of salty ice (20 wt.% Nacl - d). After irradiation at 5 keV and 1 µA.
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-07-31 08:50:29 UTC+0000)
Instrument parameters
Instrument
MoHIS - Hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
410.0 - 890.0 $nm$
Observation geometry
biconical : i=5.0° ; e=0.0° ; az=90.0° ; ph=5.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Compact slab of salty H2O ice (20 wt.% Nacl, d). After second electron irradiation.
Origin
laboratory
Texture
compact
Thickness
20.0 $\pm$ 2.0 $mm$
Temperature
90.0 $\pm$ 15.0 $K$
Irradiated by
  • electrons , 5.0 $keV.particle^{-1}$
References
Data reference
Cerubini, Romain (2020): VIS reflectance spectra collected during electron irradiation experiments of compact slabs of salty ice prepared by slowly freezing solutions of NaCl with different concentrations.. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RC_20200622_000
