- Title

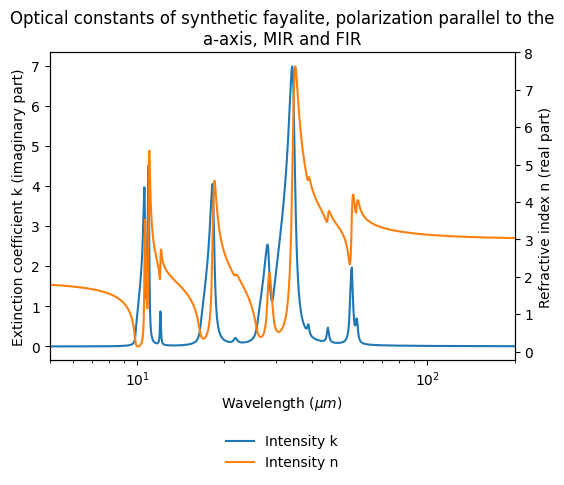

- Optical constants of synthetic fayalite, polarization parallel to the a-axis, MIR and FIR
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2020-01-28 07:25:36 UTC+0000)
- Instrument
- BRUKER 113v – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 5000.0 $cm^{-1}$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Far-IR with bolometer detector
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 50.0 - 700.0 $cm^{-1}$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Fayalite crystal, surface perpendicular to the b-axis
- Origin
- laboratory
- Texture
- compact crystal
- Temperature
- 300.0 $\pm$ 5.0 $K$
References
- Data reference
- Fabian, Dirk; Henning, Thomas; Jäger, Cornelia; Mutschke, Harald; Dorschner, Johann; Wehrhan, Ortrud (1997): Optical constants in the MIR and FIR for an oriented fayalite crystal parallel to the three crystallographic axes. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20200128_001
