Spectrum preview
Title

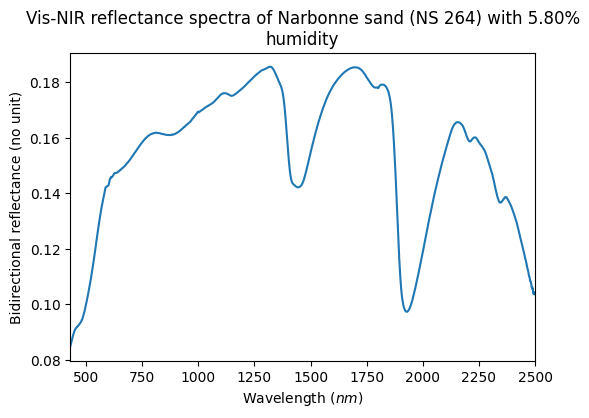

Vis-NIR reflectance spectra of Narbonne sand (NS 264) with 5.80% humidity
Database
Experiment type
laboratory measurement
Spectrum type
bidirectional reflectance
Version
#1 (2017-07-21 14:22:19 UTC+0000)
Instrument parameters
Instrument
ASD reflection VIS-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
430.0 - 2500.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=0.0° ; az=0.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Mixing of Narbonne sand (NS 264) and water with 5.80% humidity
Origin
natural terrestrial
Texture
cemented granular
Thickness
7.0 $\pm$ 1.0 $mm$
Temperature
38.0 $^{\circ}C$
Pressure
1.0 $bar$
References
Data reference
Carrère, Véronique (2005): Vis-NIR reflectance spectra of Narbonne sand (NS 264) wetted with water and dried in ambiant air at 38°C. SSHADE/SSTONE (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_VC_20050728_001
