- Title

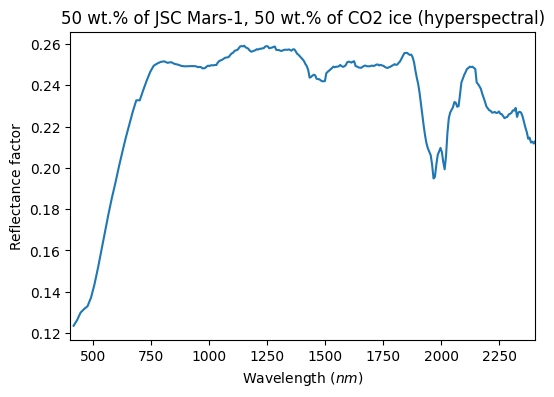

- 50 wt.% of JSC Mars-1, 50 wt.% of CO2 ice (hyperspectral)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-04-25 10:48:03 UTC+0000)
- Instrument
- SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 940.0 $nm$ ; 946.0 - 1294.0 $nm$ ; 1306.0 - 2404.0 $nm$
- Observation geometry
- biconical : i=20.0° ; e=30.0° ; az=180.0° ; ph=50.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- 50 wt.% of JSC Mars-1, 50 wt.% of CO2 ice
- Texture
- loose granular
- Thickness
- 20.0 $\pm$ 2.0 $mm$
- Temperature
- 160.0 $\pm$ 10.0 $K$
References
- Data reference
- Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of binary mixtures of particulate CO2 ice (400-800 µm) and regolith simulant JSC Mars-1 in variable amount. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180216_000
- Publications
