- Title

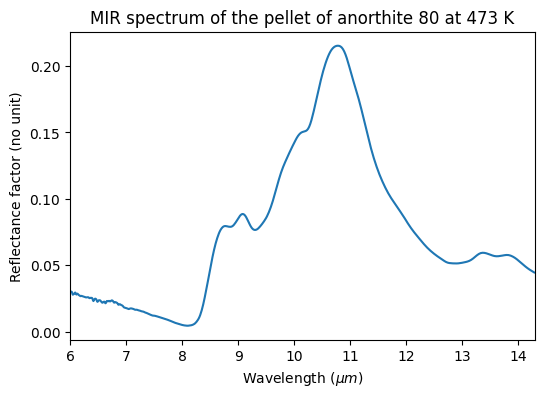

- MIR spectrum of the pellet of anorthite 80 at 473 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-07-03 19:37:40 UTC+0000)
- Instrument
- SMIS Cary 670 - confocal reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 6.0 - 14.3 ${\mu}m$
- Observation geometry
- confocal : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pellet of Anorthite 80 (bytownite)
- Texture
- compact fine grained
- Thickness
- 1000.0 $\pm$ 100.0 ${\mu}m$
- Temperature
- 473.0 $\pm$ 5.0 $K$
References
- Data reference
- Bott, Nicolas; Brunetto, Rosario (2023): MIR reflectance spectra of Mercury minerals analogs heated up to 673 K. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230626_01
