- Title

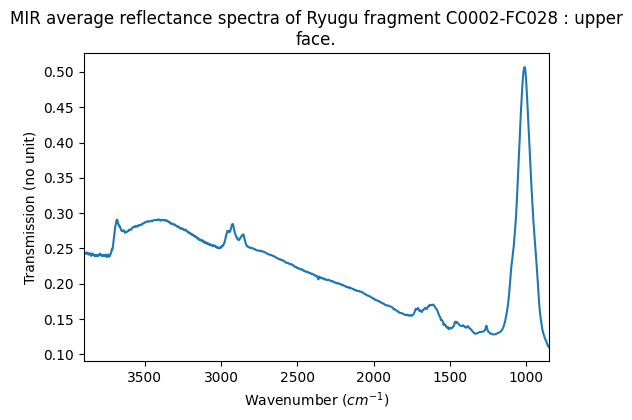

- MIR average reflectance spectra of Ryugu fragment C0002-FC028 : upper face.
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2024-11-25 15:37:45 UTC+0000)
- Instrument
- SMIS Cary 670 - trans Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 850.0 - 3900.0 $cm^{-1}$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- C0002-FC028
- Texture
- single grain
- Thickness
- 3.0 $\pm$ 0.5 ${\mu}m$
- Temperature
- 298.0 $\pm$ 283.15 $K$
References
- Data reference
- Dionnet, Zélia; Djouadi, Zahia (2022): MIR transmission spectra of two Ryugu fragments from chamber C. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20241125_01
