- Data reference

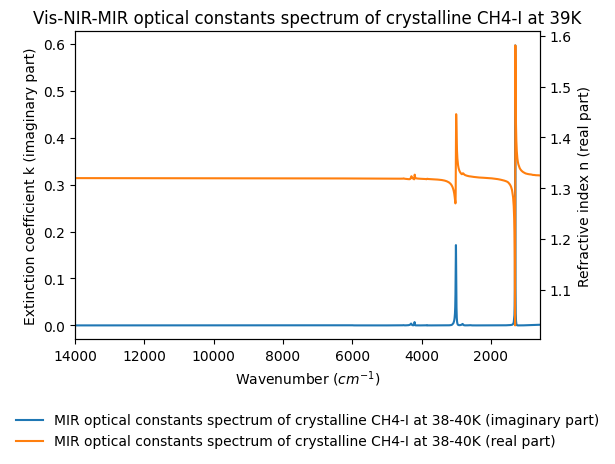

- Trotta, Frederic; Schmitt, Bernard; Grundy, Will (1995): Vis-NIR-MIR optical constants spectrum of crystalline CH4-I at 39K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Variable type(s)
-
- no
- Instrument
- Nicolet 800 – transmission Mid-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 580.0 - 5500.0 0.482131412701804 0.92 0.05
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Instrument
- Nicolet 800 – transmission Near-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 2000.0 - 7000.0 0.482131412701804 0.92 0.05
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Instrument
- Nicolet 800 – transmission Visible/red
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 7000.0 - 14000.0 0.482131412701804 0.92 0.05
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Date begin
- 1995-02-20
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000)
