Experiment
Title

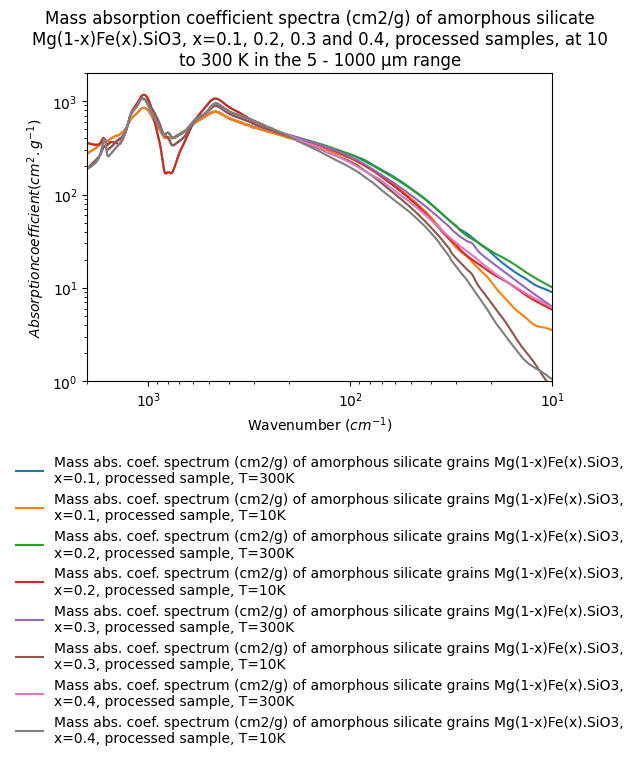

Mass absorption coefficient spectra (cm2/g) of amorphous silicate Mg(1-x)Fe(x).SiO3, x=0.1, 0.2, 0.3 and 0.4, processed samples, at 10 to 300 K in the 5 - 1000 µm range
DOI
10.26302/SSHADE/EXPERIMENT_KD_20170823
Data reference
Demyk, Karine; Meny, Claude; Lu, Xing-Heng (2015): Mass absorption coefficient spectra (cm2/g) of amorphous silicate Mg(1-x)Fe(x).SiO3, x=0.1, 0.2, 0.3 and 0.4, processed samples, at 10 to 300 K in the 5 - 1000 µm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20170823
Type(s)
laboratory measurement
Description
Mass absorption coefficient spectra (cm2/g) of amorphous silicate Mg(1x)Fex.SiO3, x=0.1, 0.2, 0.3 and 0.4, processed samples, at 10 to 300 K in the 5 - 1000 µm range (MIR to sub-mm)
Number of spectra
20
Variable type(s)
  • temperature
Comments
The grain temperature is varied from 10 K to 300 K.
Instrument
vertex70v-transmission-MIR
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max (cm1) Sampling (cm1) Resolution (cm1) Position accuracy (cm1) Absorption edge
#1 250.0 - 2000.0 2.0
Observation mode
single spot
Instrument
vertex70v-transmission-FIR
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
FIR
Valid spectral range(s)
Min - Max (cm1) Sampling (cm1) Resolution (cm1) Position accuracy (cm1) Absorption edge
#1 10.0 - 300.0 1.0
Observation mode
single spot
Instrument
Brucker125V-transmission-FIR
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
FIR, sub-mm
Valid spectral range(s)
Min - Max (cm1) Sampling (cm1) Resolution (cm1) Position accuracy (cm1) Absorption edge
#1 10.0 - 40.0 1.0
Observation mode
single spot
Date begin - end
2015-04-09 - 2015-04-09

Versions

Release date
2019-11-01 08:26:55 UTC+0000
Version (Date)
#1 (2019-11-01 08:26:55 UTC+0000, Updated: 2021-02-05 15:22:11 UTC+0000)
