Sample
Name
JSC Mars-1 Mars soil simulant (Surface preparation type A)
Date
2011-07-27
Provider
Planetary Ice Laboratory, Space and Planetary Science division, Physics Institute, University of Bern
Thickness
20.0 $\pm$ 2.0 $mm$
Diameter
20.0 $mm$
Volume
16000.0 $mm^3$
Surface roughness
flat
Substrate material
Black anodized aluminum
Comments

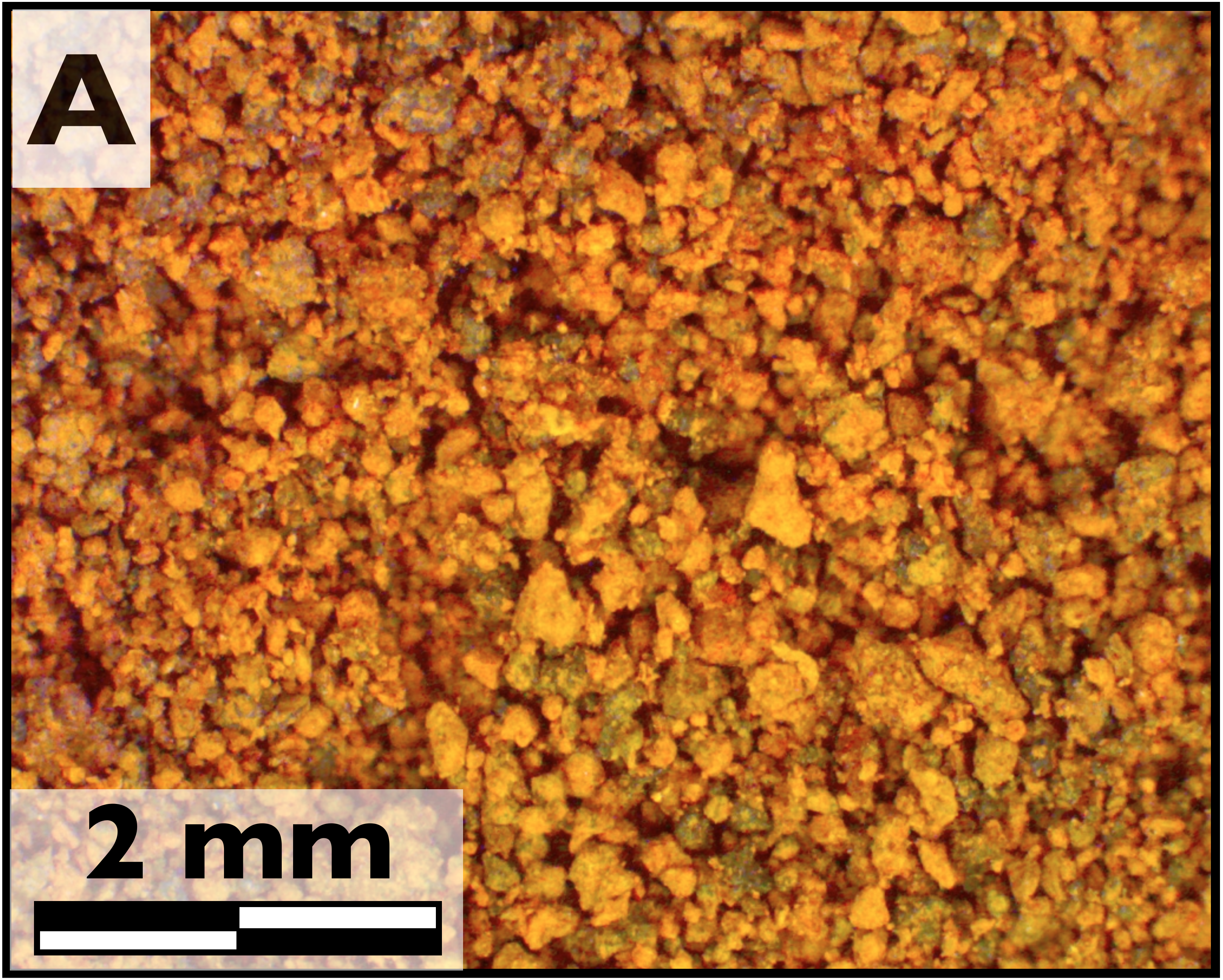

(A): the sample holder was initially overfilled and the excess of powder later removed with the edge of a steel spatula to produce a flat surface.
Temperature
293.0 $\pm$ 2.0 $K$
Time at T
2142.0 $\pm$ 600.0 $s$
Temperature max
230.0 $K$
Type
ambient air
Fluid temperature
293.0 $\pm$ 2.0 $K$
Fluid pressure
950.0 $\pm$ 50.0 $mbar$
