JSC Mars-1 Mars soil simulant (Surface preparation type C) | BYPASS | SSHADE

Sample

Name: JSC Mars-1 Mars soil simulant (Surface preparation type C)

Owner of sample

Database

BYPASS

Experimentalists

Antoine Pommerol

Origin of sample

Date: 2011-07-28
Provider: Planetary Ice Laboratory, Space and Planetary Science division, Physics Institute, University of Bern

JSC Mars-1 Mars soil simulant (Surface preparation type C)

Physical characteristics

Thickness: 20.0 $\pm$ 2.0 $mm$
Diameter: 20.0 $mm$
Volume: 16000.0 $mm^3$
Surface roughness: slightly compacted
Substrate material: Black anodized aluminum

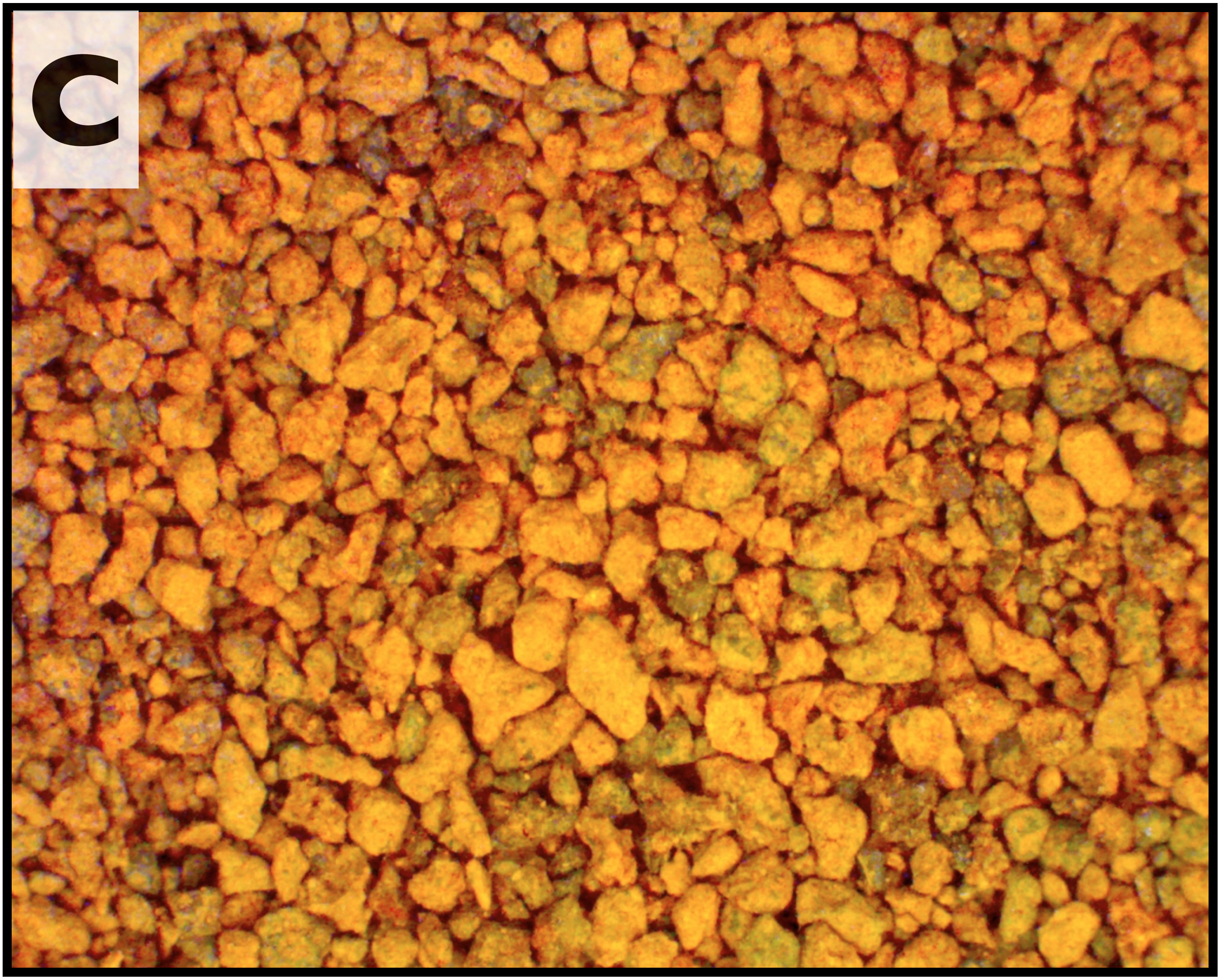

Comments: (C): a surface composed of sprayed powder was slightly compressed with a smooth and flat surface.

Sample environment: Temperature

Temperature: 293.0 $\pm$ 2.0 $K$
Time at T: 2142.0 $\pm$ 600.0 $s$
Temperature max: 230.0 $K$

Sample environment: Fluid

Type: ambient air
Fluid temperature: 293.0 $\pm$ 2.0 $K$
Fluid pressure: 950.0 $\pm$ 50.0 $mbar$

Documentation and publication

Publications

Pommerol et al., 2013, J. Geophys. Res. E, 118, 2045 - 2072

Layers in sample

Number

1

Layers

JSC Mars-1 Mars soil simulant (Surface preparation type C) , 20.0 $mm$

Sample processings
