Sample
Name
Na-Montmorillonite SWy-2 - 280-400 mic grains
Database
Experimentalists
Date
2007-01-01
Provider
IPAG

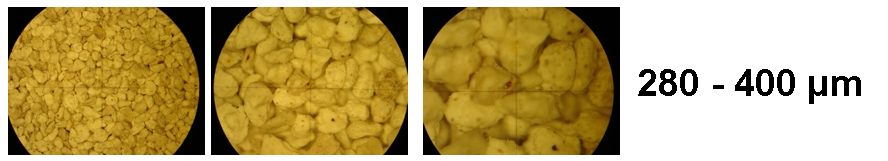

Pictures of the 280-400µm grain size fraction of SWy-2 smectite particles taken under a binocular microscope at three different zoom levels (zoom level increases from left (5mm FS) to right (1mm FS))
Physical characteristics
Thickness
3.0 $\pm$ 0.2 $mm$
Diameter
30.0 $mm$
Volume
700.0 $mm^3$
Mass
0.46 $\pm$ 0.01 $g$
Surface roughness
low
Substrate material
aluminum anodized black
Substrate comments
plate with 3 mm deep 30 mm diameter circular hole
Temperature
298.0 $\pm$ 1.0 $K$
Time at T
0.0 $min$
Temperature max
298.0 $K$
Comments
Sample temperature error is mostly due to room temperature variations
Type
molecular gas
Fluids
Fluid temperature
298.0 $\pm$ 1.0 $K$
Fluid pressure
1000.0 $\pm$ 50.0 $mbar$
Publications
Number
1
Layers
