Sample
Name
Pigment Fontenaille (PIG-0175-2016), ferruginous sandstone, powder grains inf. 160µm
Database
Experimentalists
Date
2019-12-09
Provider
Pigmenthothèque - EDYTEM

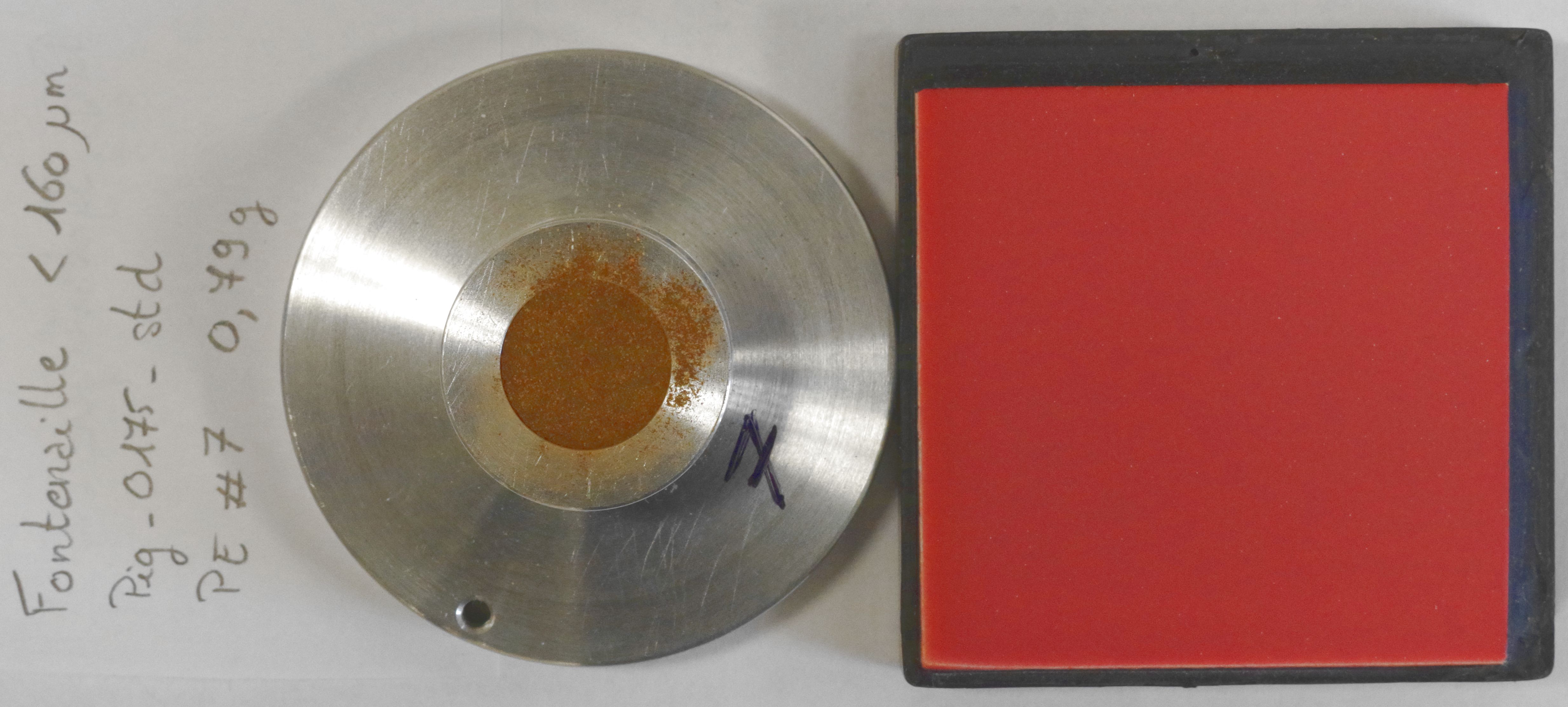

Pigment Fontenaille < 160 µm (PIG-0175) in sample holder for NIR spectrum @ SHINE (D=14mm, d=3.5mm)
Physical characteristics
Surface roughness
slightly tamped and smoothed
Substrate material
black anodized aluminium for Visible and raw aluminium for the NIR
Comments
diameter / thichness is 20 mm / 5 mm in the Visible (2.474g) @ SHADOWS and 14 mm / 3.5 mm for the NIR (0.792g) @ SHINE
Temperature
298.0 $\pm$ 1.0 $K$
Temperature max
300.0 $K$
Type
ambient air
Fluid temperature
298.0 $\pm$ 1.0 $K$
Fluid pressure
1.0 $bar$
Comments
room conditions
Number
1
Layers
