Pigment Pierrerue (PIG_0176_A_301), bauxite block #2 | PIG | SSHADE

Sample

Name: Pigment Pierrerue (PIG_0176_A_301), bauxite block #2

Owner of sample

Database

PIG

Experimentalists

Hélène Salomon

Origin of sample

Date: 2011-06-02
Provider: Pigmenthothèque - EDYTEM

Pigment Pierrerue (PIG_0176_A_301) block #2 (~20x15x9 mm), sawn face #1

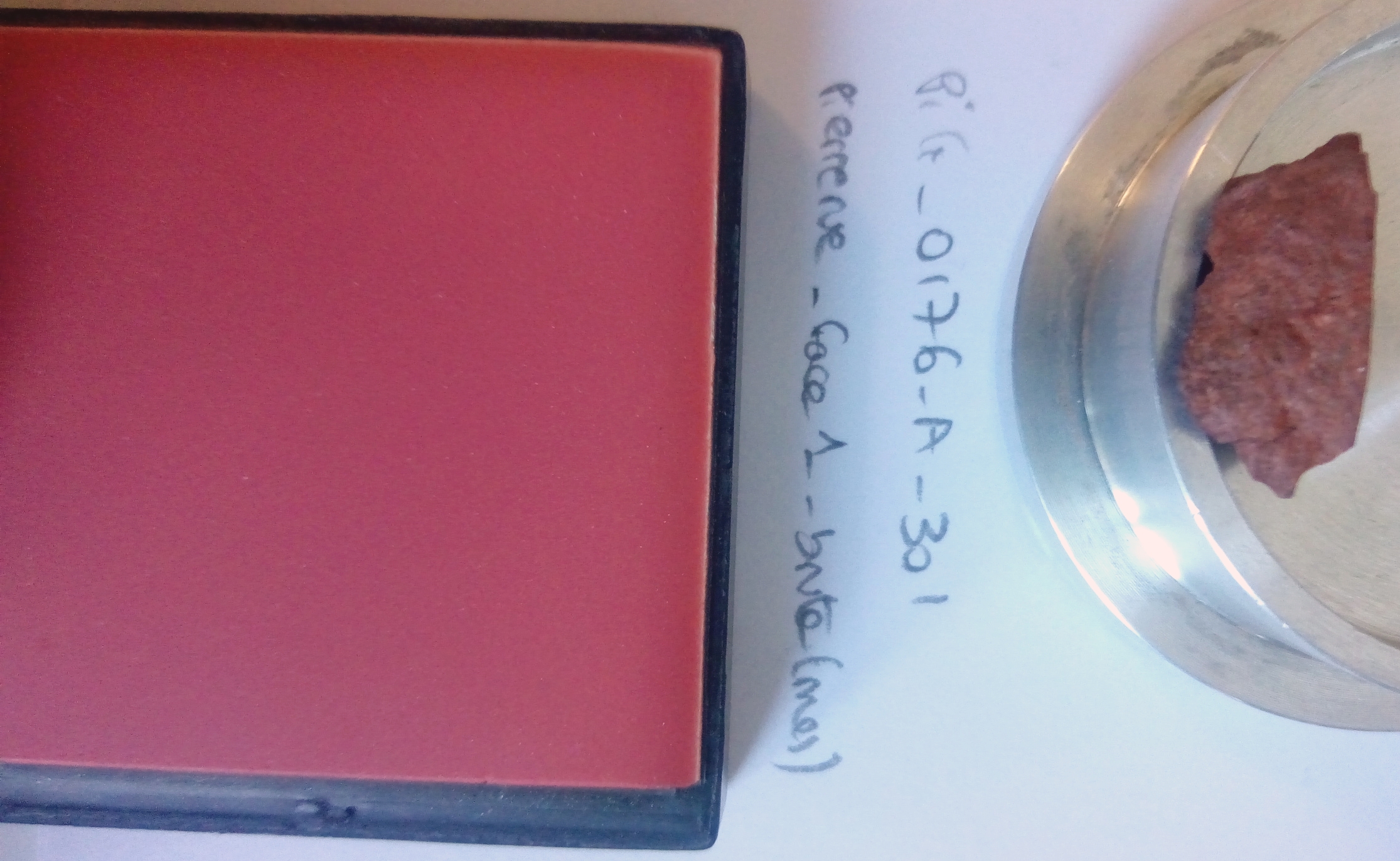

Pigment Pierrerue (PIG_0176_A_301) block #2 (~320x15x9 mm), raw face #2, with red spectralon standard

Physical characteristics

Thickness: 7.0 $\pm$ 2.0 $mm$
Mass: 2.48 $g$
Surface roughness: raw but relatively smooth
Substrate material: no
Comments: small irregular red block (20x15x9 mm) with one sawn face (#1)

Sample environment: Temperature

Temperature: 297.5 $\pm$ 2.0 $K$
Temperature max: 300.0 $K$

Sample environment: Fluid

Type: ambient air
Fluid temperature: 297.5 $K$
Fluid pressure: 1.0 $bar$
Comments: room conditions

Layers in sample

Number

1

Layers

Pigment Pierrerue - block #2 , 7.0 $mm$
