Sample
Name
MGS-1 Mars global simulant (180-2000 µm size fraction)
Database
Experimentalists
Date
2020-11-13
Provider
Planetary Ice Laboratory, Space and Planetary Science division, Physics Institute, University of Bern

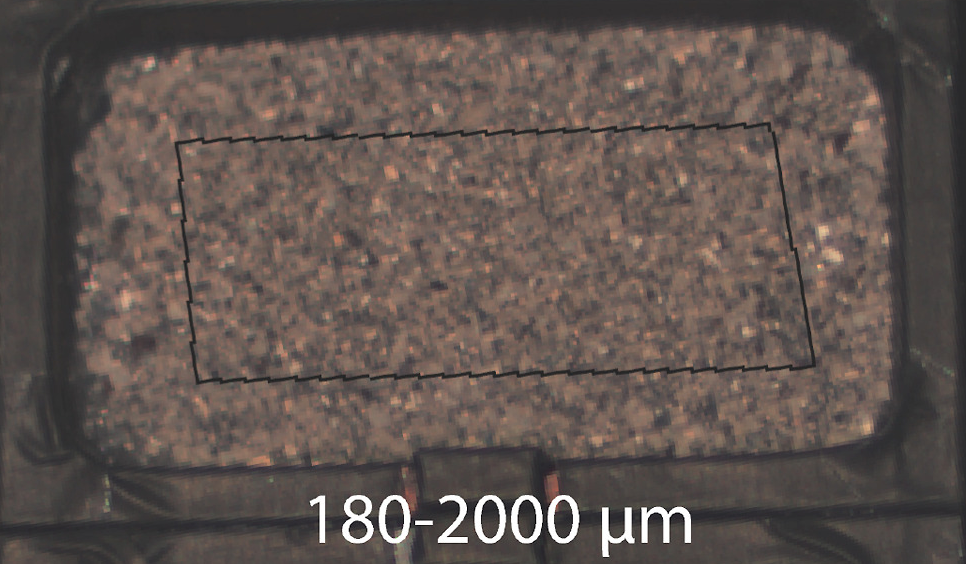

Size fraction 180-2000 µm of the MGS-1 Mars global simulant from CLASS Exolith Lab (UCF). The VIS-NIR reflectance spectrum is collected over the outlined Region of Interest (black).
Physical characteristics
Thickness
20.0 $\pm$ 2.0 $mm$
Diameter
20.0 $mm$
Volume
16000.0 $mm^3$
Surface roughness
smooth
Substrate material
Black anodized aluminum
Temperature
293.0 $\pm$ 2.0 $K$
Time at T
2142.0 $\pm$ 600.0 $s$
Temperature max
230.0 $K$
Type
ambient air
Fluid temperature
293.0 $\pm$ 2.0 $K$
Fluid pressure
950.0 $\pm$ 50.0 $mbar$
Time at T, P, pH
2142.0 $\pm$ 600.0 $s$
Publications
Number
1
Layers
