- DOI
- 10.26302/SSHADE/EXPERIMENT_LM_20220303_BAS
- Data reference
- Mandon, Lucia; Beck, Pierre (2018): Vis-NIR reflectance spectra of basalts (raw pieces and powders). SSHADE/ROMA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LM_20220303_BAS
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

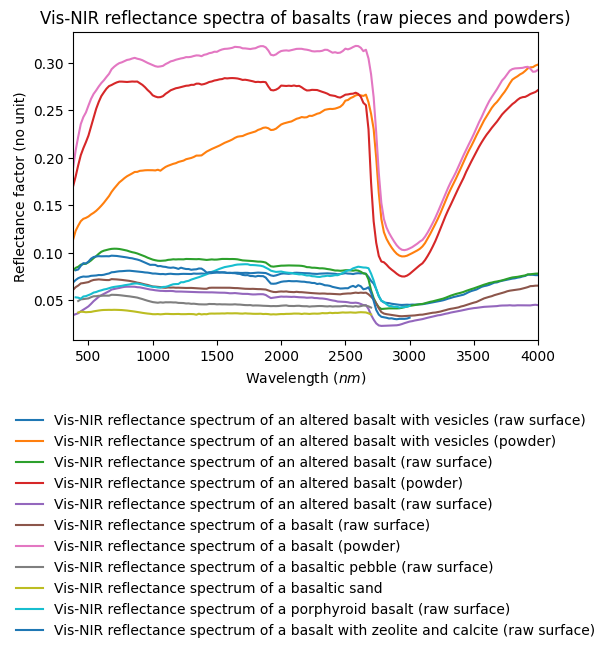

- Vis-NIR reflectance spectra (i=0°, e=30°, az=0°) of basalts (raw surfaces and powders).
- Number of spectra
- 11
- Variable type(s)
-
- sample composition
- sample texture
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- Flat sample holder in anodized aluminum (not blackened)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 380.0 - 660.0 20.0 4.8 #2 680.0 - 1480.0 20.0 9.5 #3 1500.0 - 2980.0 20.0 19.0 #4 3000.0 - 4000.0 20.0 38.6 - Comments
- Measured over the 360-4000 nm range
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 30.0°
- Azimuth angle
- 0.0°
- Phase angle
- 30.0°
- Resolution illumination
- 2.9°
- Resolution observation
- 2.05°
Illumination
Observation
- Comments
- Partial polarization variable with wavelength (from monochromator grating)
- Observation mode
- single spot
- Spatial resolution
- 5.2 $mm$
- Date begin
- 2018-10-16
Versions
- Release date
- 2022-04-23 09:52:41 UTC+0000
- Version (Date)
- #1 (2022-04-23 09:52:41 UTC+0000, Updated: 2022-04-23 09:52:41 UTC+0000)
