- DOI
- 10.26302/SSHADE/EXPERIMENT_AP_20240312_0001
- Data reference
- Kohout, Tomas (2021): Visible-near-infrared reflectance spectra of olivine-pyroxene mixtures. SSHADE/UH-ApS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AP_20240312_0001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

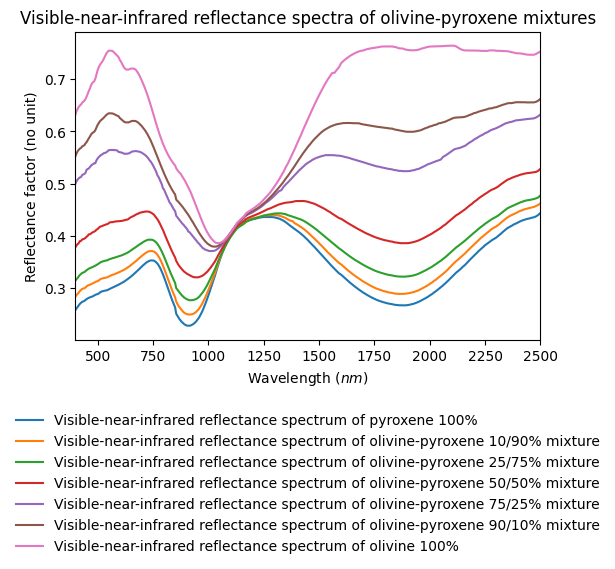

- Visible-near-infrared reflectance spectra of olivine-pyroxene mixtures
- Number of spectra
- 7
- Variable type(s)
-
- sample abundance
- Instrument
- Gooch & Housego OL 750 Spectroradiometer - diffuse reflection UV-Vis-NIR
- Sample holder
- Black teflon cylindrical cavity
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 400.0 - 1100.0 5.0 5.0 #2 1100.0 - 2500.0 10.0 10.0
Definition: incidence angle is positive with origin at nadir. Azimuth origin (increasing clockwise) is arbitrary.
- Observation geometry
- conical-hemispherical
- Observation mode
- fixed angles
- Incidence angle
- 30.0°
- Observation mode
- single spot
- Spatial resolution
- 5.0 $mm$
- Date begin
- 2021-12-17
Versions
- Release date
- 2024-03-28 11:48:29 UTC+0000
- Version (Date)
- #1 (2024-03-28 11:48:29 UTC+0000, Updated: 2024-03-28 11:48:29 UTC+0000)
