- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20130125_002
- Data reference
- Trotta, Frederic; Schmitt, Bernard (1992): MIR optical constants of amorphous H2S at 56K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130125_002
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

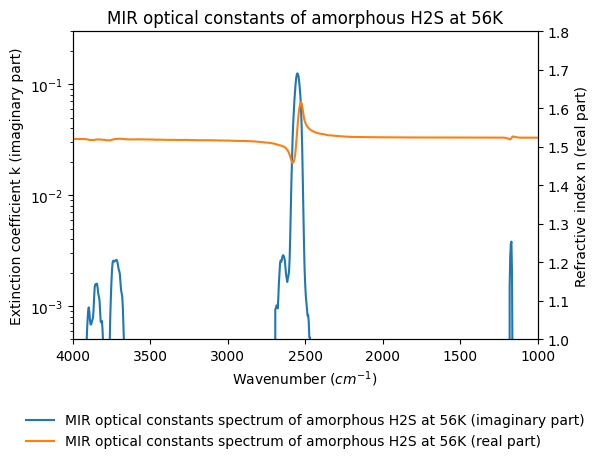

- MIR optical constants of amorphous H2S from sample deposited and measured at 56K
- Number of spectra
- 1
- Instrument
- Nicolet 800 – transmission Mid-IR
- Sample holder
- CsI window 2mm thick cooled by He cryostat in UHV chamber with 2 CsI windows 5mm thick
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 950.0 - 4000.0 3.8572058 0.96 0.4 - Comments
- initial sampling frequency, 0.482cm-1, has been reduced by factor of 8
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 180.0°
- Azimuth angle
- 0.0°
- Phase angle
- 180.0°
- Resolution illumination
- 15.0°
- Resolution observation
- 20.0°
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Spatial resolution
- 8.0 ${\pm}$ 1.0 $mm$
- Date begin
- 1992-09-30
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2020-04-30 08:01:54 UTC+0000)
- Sponsors
-
- Programme National de Physique et Chimie du Milieu Interstellaire - INSU/CNRS (PCMI)
