- Title
- MIR absorption coefficient spectra of H2S (nu_1,nu_3 bands) in 3 different phases (amorphous, III, II) and diluted in SO2 ice
- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20200202_001
- Data reference
- Schmitt, Bernard (1991): MIR absorption coefficient spectra of H2S (nu_1,nu_3 bands) in 3 different phases (amorphous, III, II) and diluted in SO2 ice. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200202_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

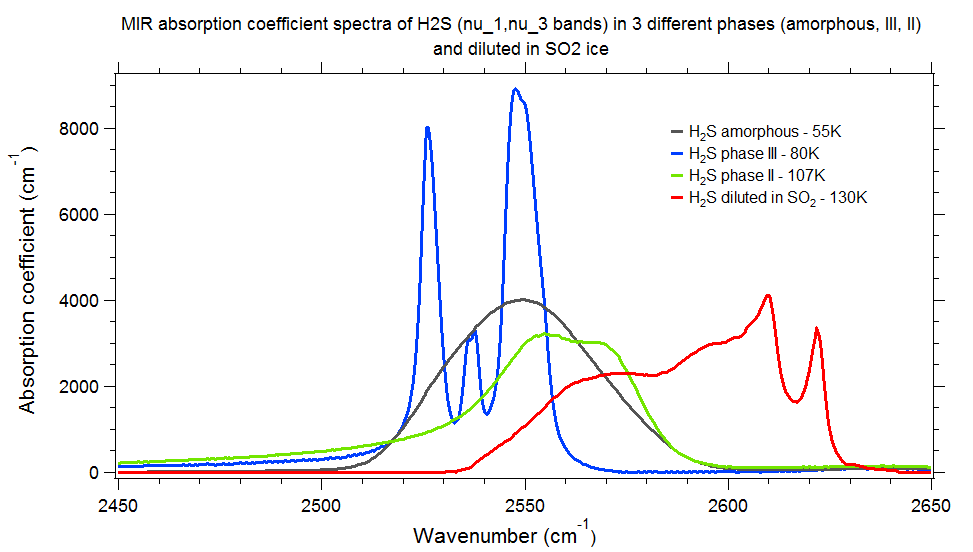

- MIR absorption coefficient spectra of H2S (around the nu_1,nu_3 bands) in 3 different phases (amorphous (56K), III (85K), II (107K)) and diluted in SO2 ice (130K)
- Number of spectra
- 4
- Variable type(s)
-
- sample phase
- sample composition
- Instrument
- Nicolet 800 – transmission Mid-IR
- Sample holder
- KBr or CsI window 2mm thick cooled by He cryostat in UHV chamber (with 2 KBr or CsI windows 5mm thick)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 2200.0 - 2800.0 0.4821 0.96 0.05
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 180.0°
- Azimuth angle
- 0.0°
- Phase angle
- 180.0°
- Resolution illumination
- 15.0°
- Resolution observation
- 20.0°
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Spatial resolution
- 8.0 ${\pm}$ 1.0 $mm$
- Date begin - end
- 1991-09-20 - 1999-04-16
Versions
- Release date
- 2020-04-20 17:28:07 UTC+0000
- Version (Date)
- #1 (2020-04-20 17:28:07 UTC+0000, Updated: 2020-04-20 17:28:07 UTC+0000)
- Sponsors
-
- Programme National de Planétologie - INSU/CNRS (PNP)
- Centre National d'Etudes Spatiales (CNES) (NIMS/Galileo)
