- Title

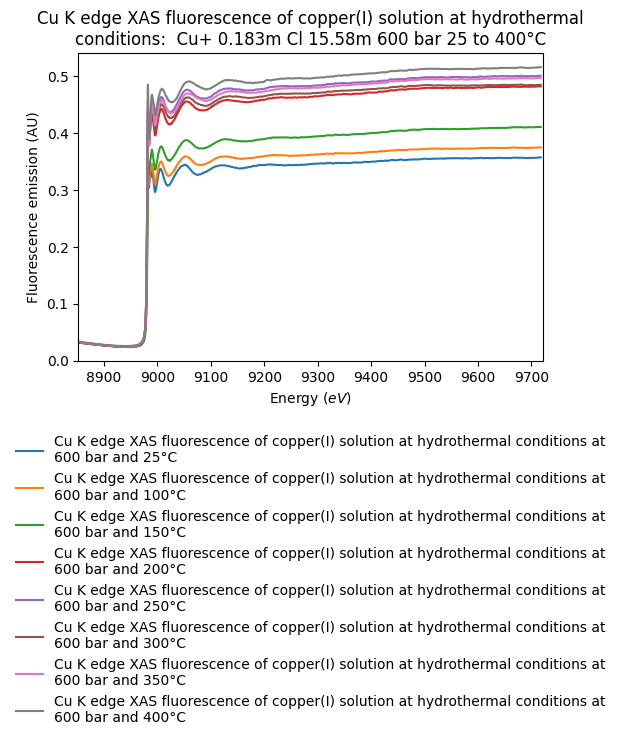

- Cu K edge XAS fluorescence of copper(I) solution at hydrothermal conditions: Cu+ 0.183m Cl 15.58m 600 bar 25 to 400°C
- DOI
- 10.26302/SSHADE/EXPERIMENT_DT_20050706_001
- Data reference
- Testemale, Denis; Brugger, Joel; Etschmann, Barbara; Liu, Weihua (2005): Cu K edge XAS fluorescence of copper(I) solution at hydrothermal conditions: Cu+ 0.183m Cl 15.58m 600 bar 25 to 400°C. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20050706_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 8
- Variable type(s)
-
- temperature
- Instrument
- X-ray Absorption Spectroscopy measured in fluorescence mode
- Sample holder
- Institut Néel autoclave
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 8852.0 - 9722.0 0.46 $Cu$ (K: 8.9878 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Cu metallic foil (first maximum of the derivative set at 8979 eV).
Definition: emergence angle is positive with origin at nadir. Azimuth origin (increasing clockwise) is arbitrary.
- Observation geometry
- directional
- Observation mode
- fixed angles
- Comments
- Emitted x-rays are collected in a solid angle directed at 90 degrees from the incident beam.
- Observation mode
- single spot
- Date begin - end
- 2005-07-06 - 2005-07-11
Versions
- Release date
- 2019-07-24 14:59:52 UTC+0000
- Version (Date)
- #1 (2019-07-24 14:59:52 UTC+0000, Updated: 2020-06-16 10:09:26 UTC+0000)
