Experiment
Title
Ag K edge XAS fluorescence of AgL1 complex solution (L1=NTA(CysOEt)3 and pH=7.4) at 16K
DOI
10.26302/SSHADE/EXPERIMENT_GV_20181121_002
Data reference
Veronesi, Giulia; Delangle, Pascale; Carriere, Marie (2014): Ag K edge XAS fluorescence of AgL1 complex solution (L1=NTA(CysOEt)3 and pH=7.4) at 16K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GV_20181121_002
Publications
Database(s)
Experimentalists

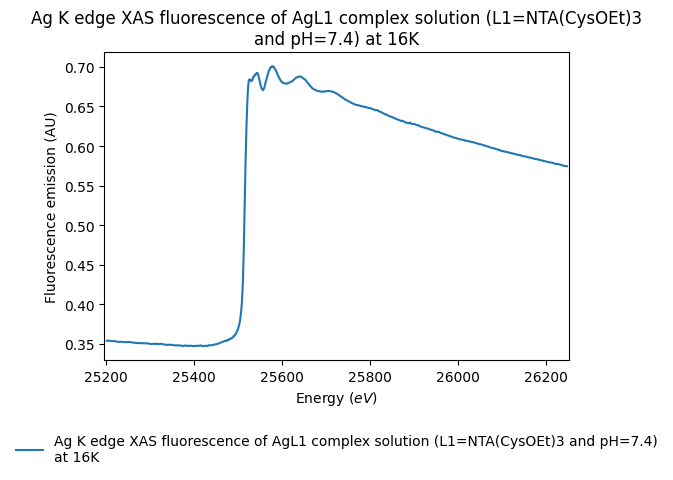

Spectra preview
Experiment type
Type(s)
laboratory measurement
Number of spectra
1
Variable type(s)
  • no
Laboratory
French Absorption spectroscopy beamline in Material and Environmental science (FAME)
Instrument #1
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 25196.0 - 26254.0 1.3 $Ag$ (K: 25.514 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the Ag K spectrum of a reference Ag metallic foil (first maximum of the derivative set at 25514 eV).
Observation mode
single spot
Date begin
2014-07-01

Versions

Release date
2018-12-05 10:06:41 UTC+0000
Version (Date)
#1 (2018-12-05 10:06:41 UTC+0000, Updated: 2018-12-03 10:55:24 UTC+0000)
