- Title
- Mid-IR absorbance spectra of bulk CI chondrites in KBr pellets at ambient temperature, 150°C and 300°C
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20170719_001
- Data reference
- Beck, Pierre (2012): Mid-IR absorbance spectra of bulk CI chondrites in KBr pellets at ambient temperature, 150°C and 300°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20170719_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

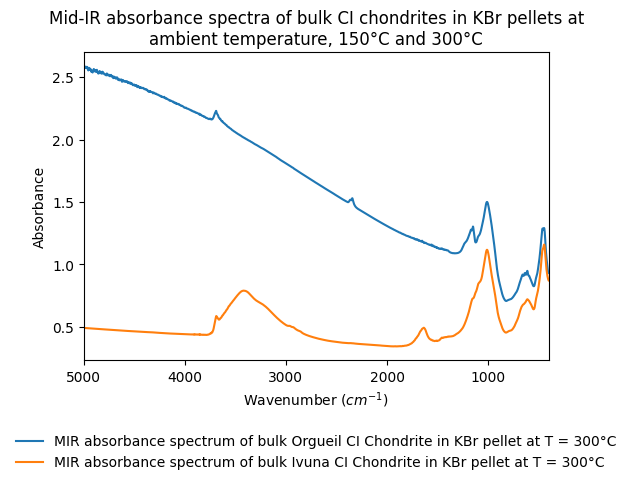

- Mid-IR absorbance spectra of 2 bulk CI chondrites, Orgueil and Ivuna, in KBr pellets at 3 different temperatures: ambient temperature, 150°C and 300°C
- Number of spectra
- 6
- Variable type(s)
-
- sample composition
- temperature
- Instrument
- Brucker Vertex 70v – transmission Mid-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 400.0 - 5000.0 1.9287 4.0 0.05
- Observation mode
- single spot
- Spots number
- 1
- Spatial resolution
- 3.0 ${\pm}$ 1.0 ${\mu}m$
- Comments
- laser right in the center - spot of a few microns
- Date begin
- 2012-04-06
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2021-01-15 07:38:36 UTC+0000)
