- Title

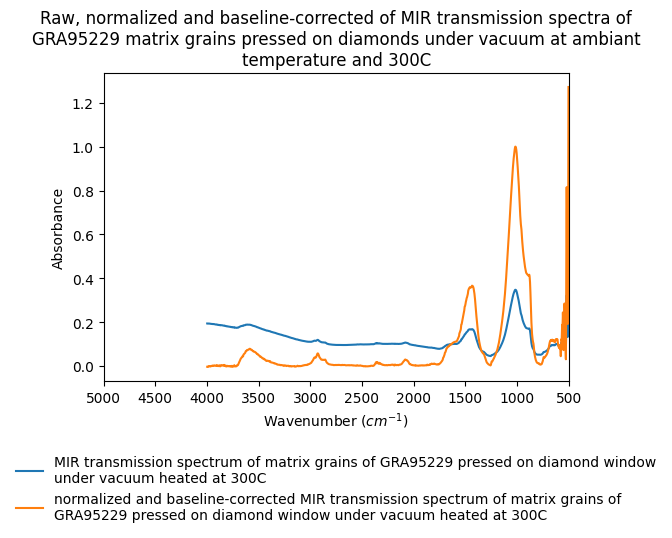

- Raw, normalized and baseline-corrected of MIR transmission spectra of GRA95229 matrix grains pressed on diamonds under vacuum at ambiant temperature and 300C
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20170731_003
- Data reference
- Bonal, Lydie (2011): Raw, normalized and baseline-corrected of MIR transmission spectra of GRA95229 matrix grains pressed on diamonds under vacuum at ambiant temperature and 300C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20170731_003
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- MIR spectra of several matrix grains of GRA95229 at different temperature, under vacuum
- Number of spectra
- 10
- Variable type(s)
-
- spectrum type
- chemical variability
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Sample holder
- The diamond windows were loaded into a cell, enabling temp. up to 300C under vacuum (from 10-4 mbar down to 10-7 mbar). Optical access is permitted from both sides of the cell through KBr windows, thus enabling measurements in transmission.
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 500.0 - 5000.0 1.928712 4.0 0.05
- Observation mode
- single spot
- Spots number
- 1
- Objective type
- x15
- Pixels number
- 1 x 1
- Image size
- 40.0 x 40.0 ${\mu}m$
- Spatial resolution
- 3.0 ${\pm}$ 1.0 ${\mu}m$
- Comments
- the typical size of the spot on the sample was 40 x 40 microns2
- Date begin
- 2011-09-27
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000)
