Experiment
Title
Zr K edge XAS fluorescence of synthetic zircon ZrSiO4 at ambient conditions
DOI
10.26302/SSHADE/EXPERIMENT_ML_20171219_003
Data reference
Louvel, Marion; Malfait, Wim; Sanchez-Valle, Carmen (2009): Zr K edge XAS fluorescence of synthetic zircon ZrSiO4 at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ML_20171219_003
Publications
Database(s)
Experimentalists

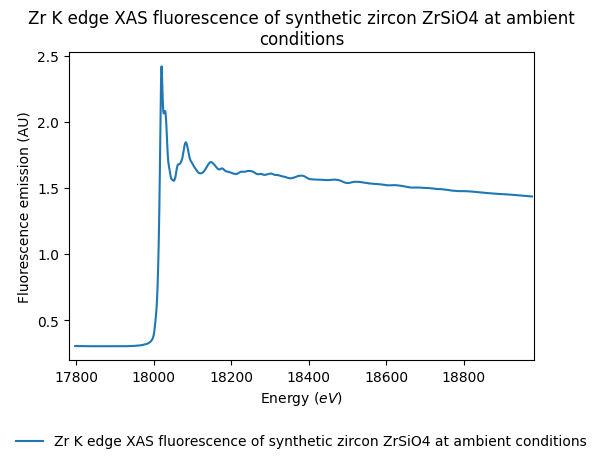

Spectra preview
Experiment type
Type(s)
laboratory measurement
Number of spectra
1
Variable type(s)
  • no
Laboratory
French Absorption spectroscopy beamline in Material and Environmental science (FAME)
Instrument #1
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 17781.0 - 18981.0 0.9 $Zr$ (K: 17.9976 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the spectrum of a reference Zr metallic foil (first maximum of the derivative set at 17998 eV).
Observation mode
single spot
Date begin
2009-11-01

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2018-01-31 23:51:01 UTC+0000, Updated: 2020-10-07 14:48:23 UTC+0000)
