- DOI
- 10.26302/SSHADE/EXPERIMENT_SOC_20120921_001
- Data reference

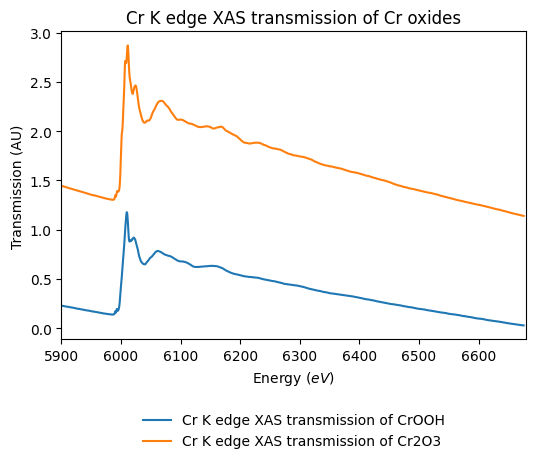

- Ould-Chikh, Samy; Proux, Olivier (2012): Cr K edge XAS transmission of Cr oxides. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SOC_20120921_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 2
- Comments
- These data were acquired on the BM30 beamline in the frame of the proposal.
- Variable type(s)
-
- sample composition
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Sample holder
- simple holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 5900.0 - 6680.0 0.307 $Cr$ (K: 5.9892 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Cr metallic foil (first maximum of the derivative set at 5989 eV).
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Date begin - end
- 2012-09-21 - 2012-09-21
Versions
- Release date
- 2024-09-27 08:45:43 UTC+0000
- Version (Date)
- #1 (2024-09-27 08:45:43 UTC+0000, Updated: 2024-09-27 08:45:43 UTC+0000)
