- Title

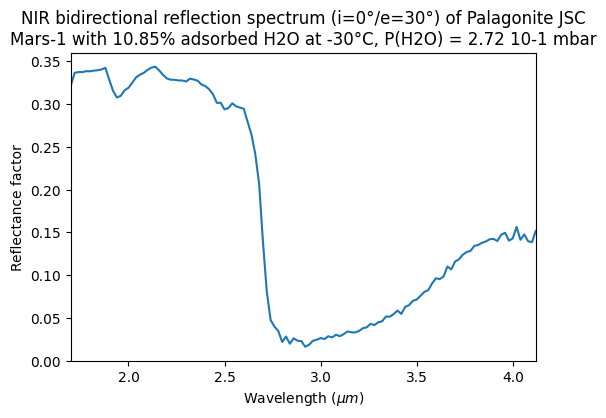

- NIR bidirectional reflection spectrum (i=0°/e=30°) of Palagonite JSC Mars-1 with 10.85% adsorbed H2O at -30°C, P(H2O) = 2.72 10-1 mbar
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2017-07-04 10:13:32 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1.7 - 2.0 ${\mu}m$ ; 2.0 - 4.12 ${\mu}m$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Palagonite JSC Mars-1 with 10.85% adsorbed H2O
- Origin
- natural terrestrial
- Texture
- earthy
- Thickness
- 1.0 $\pm$ 0.1 $mm$
- Temperature
- 243.1 $\pm$ 1.0 $K$
- Fluid
-
- $H_2O$ , 100.0%
References
- Data reference
- Pommerol, Antoine; Schmitt, Bernard (2007): Near-IR bidirectional reflection spectra (i=0°/e=30°) of Palagonite JSC Mars-1 with different amounts of adsorbed H2O at -30°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20121219_001
