- Title

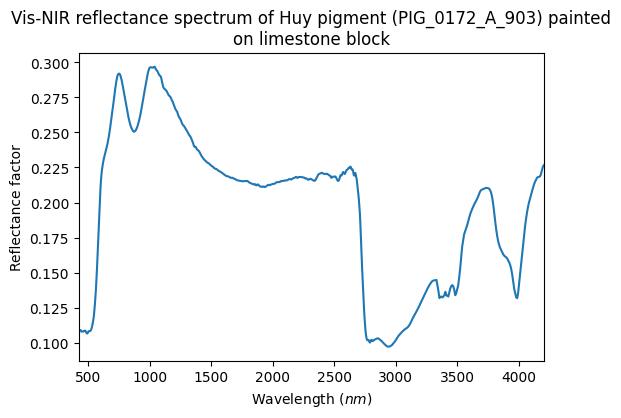

- Vis-NIR reflectance spectrum of Huy pigment (PIG_0172_A_903) painted on limestone block
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-08-15 14:28:19 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 422.0 - 598.0 $nm$ ; 602.0 - 1426.0 $nm$ ; 1430.0 - 2834.0 $nm$ ; 2842.0 - 4202.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Huy (PIG_0172_A_903) painted on limestone block
- Texture
- cemented granular, compact fine grained
- Temperature
- 293.0 $\pm$ 2.0 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Huy pigments (PIG_0172_A): blocks, powders, plots and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200813_100
