Spectrum preview
Title

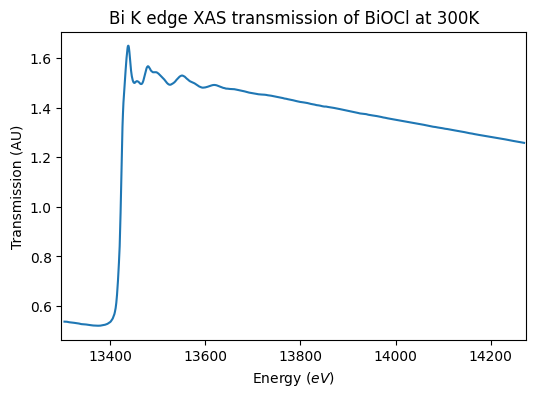

Bi K edge XAS transmission of BiOCl at 300K
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2024-12-16 21:36:44 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
13298.0 - 14275.0 $eV$
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of BiOCl - Bismoclite mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
300.0 $\pm$ 1.0 $K$
Pressure
1.0 $bar$
References
Data reference
Etschmann, Barbara; Brugger, Joel; Grundler, Pascal; Testemale, Denis; Tooth, Blake; Liu, Weihua (2009): Bi K edge XAS transmission of Bi(III) model compounds at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JB_20090211_001
Publications
