- Title

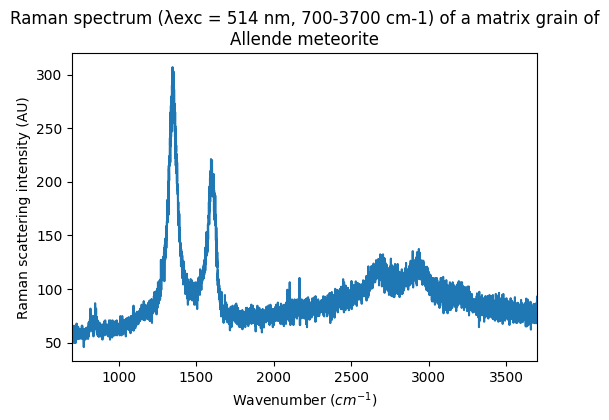

- Raman spectrum (λexc = 514 nm, 700-3700 cm-1) of a matrix grain of Allende meteorite
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- Raman scattering intensity
- Version
- #1 (2017-07-04 10:13:32 UTC+0000)
- Instrument
- LabRAM HR800 micro-Raman Vis - 514 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 700.0 - 3700.0 $cm^{-1}$
- Observation geometry
- other geometry :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Allende_514 meteorite grains
- Origin
- extraterrestrial
- Texture
- individual grains
- Thickness
- 10.0 $\pm$ 10.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Irradiated by
-
- Vis photons , 3.87e-19 $J.particle^{-1}$
References
- Data reference
- Bonal, Lydie (2003): Raman spectra (λ = 514 nm) of matrix grains of CV meteorites. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20140114_001
- Publications
