Average reflectance spectrum of a fragment of B-7904 chondrite (C2) in the MIR range | DAYSY

Spectrum preview

Title

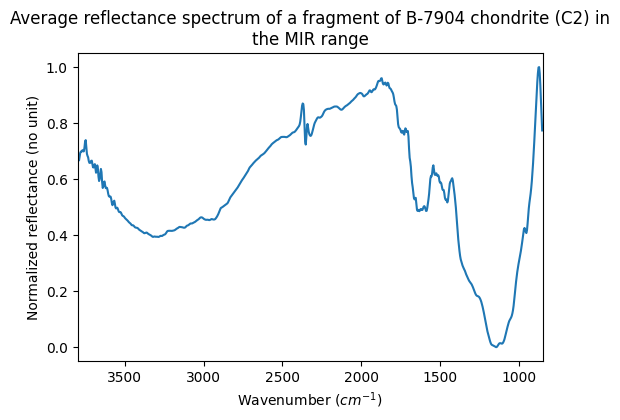

Average reflectance spectrum of a fragment of B-7904 chondrite (C2) in the MIR range

Database

DAYSY

Experiment type

laboratory measurement

Spectrum type

normalized reflectance

Version

#1 (2022-06-03 17:42:07 UTC+0000)

Instrument parameters

Instrument: SMIS Cary 670 - confocal reflection Mid-IR
Spectral observation mode: spectrum
Valid spectral range(s): 850.0 - 3800.0 $cm^{-1}$
Observation geometry: direct :
Angle observation mode: N/A
Spatial observation mode: averaged

Sample preview

Name: Milimetric fragment of Belgica 7904 meteorite
Texture: cemented granular
Thickness: 3000.0 $\pm$ 1000.0 ${\mu}m$
Temperature: 300.0 $\pm$ 5.0 $K$
Pressure: 1.0 $atm$

References

Data reference

Lantz, Cateline; Brunetto, Rosario; Baklouti, Donia; Dionnet, Zélia; Rubino, Stefano; Arribard, Yann (2018): MIR reflectance spectra of different samples of carbonaceous chondrites (pellets and fragments). SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CL_20180316_01

Publications

Dionnet et al., 2022, Meteorit. Planet. Sci., 57, 965 - 988
