- Title
- Representative raw Raman spectra (514 nm) of matrix grains from CM and C2-ungrouped chondrites
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20180719_001
- Data reference
- Quirico, Eric (2016): Representative raw Raman spectra (514 nm) of matrix grains from CM and C2-ungrouped chondrites. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20180719_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

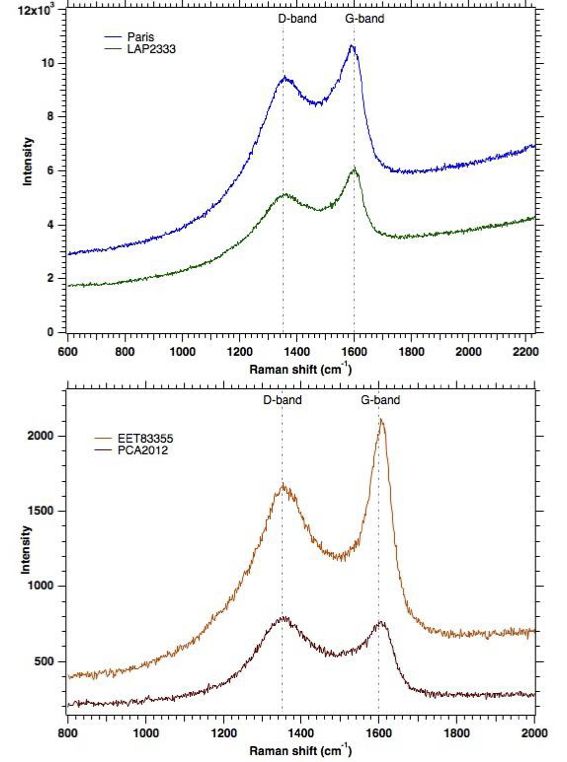

- Individual representative raw Raman spectra obtained on matrix grains from CM and C2-ungrouped chondrites obtained with a 514 nm laser
- Number of spectra
- 10
- Variable type(s)
-
- sample composition
- Instrument
- Micro-Raman LabRam HR800 - 514 nm
- Sample holder
- microscope glass slide in ambient room air
- Standard medium
- air
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 490.0 - 2230.0 0.525 1.0 0.2 - Filters
-
Type Center/Edge ($cm^{-1}$) Width ($cm^{-1}$) Place #1 notch filter 0.0 76.0 - Comments
- Notch filter: (514 +/- 2) nm
- Observation mode
- single spot
- Spots number
- 1
- Objective type
- x100
- Pixels number
- 1 x 1
- Image size
- 0.9 x 0.9 ${\mu}m$
- Comments
- ]
- Date begin - end
- 2016-01-01 - 2016-01-01
Versions
- Release date
- 2018-07-19 16:03:05 UTC+0000
- Version (Date)
- #2 (2018-07-19 16:03:05 UTC+0000)
- Older version(s)
