- Title

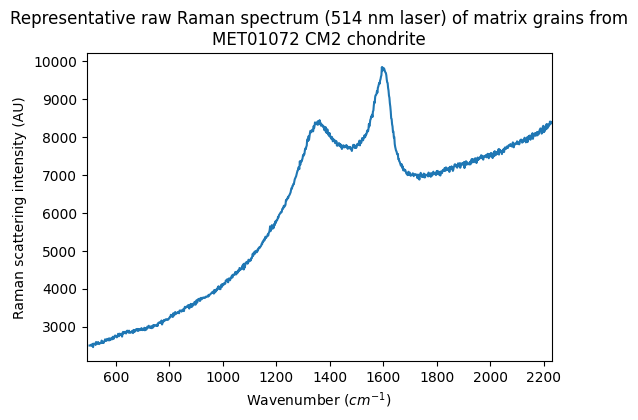

- Representative raw Raman spectrum (514 nm laser) of matrix grains from MET01072 CM2 chondrite
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- Raman scattering intensity
- Version
- #1 (2018-07-19 16:00:36 UTC+0000)
- Instrument
- Micro-Raman LabRam HR800 - 514 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 490.0 - 2230.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- MET01072_514 matrix grains
- Origin
- extraterrestrial
- Texture
- individual grains
- Thickness
- 10.0 $\pm$ 10.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Irradiated by
-
- Vis photons , 3.87e-19 $J.particle^{-1}$
References
- Data reference
- Quirico, Eric (2016): Representative raw Raman spectra (514 nm) of matrix grains from CM and C2-ungrouped chondrites. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20180719_001
- Publications
