- Title

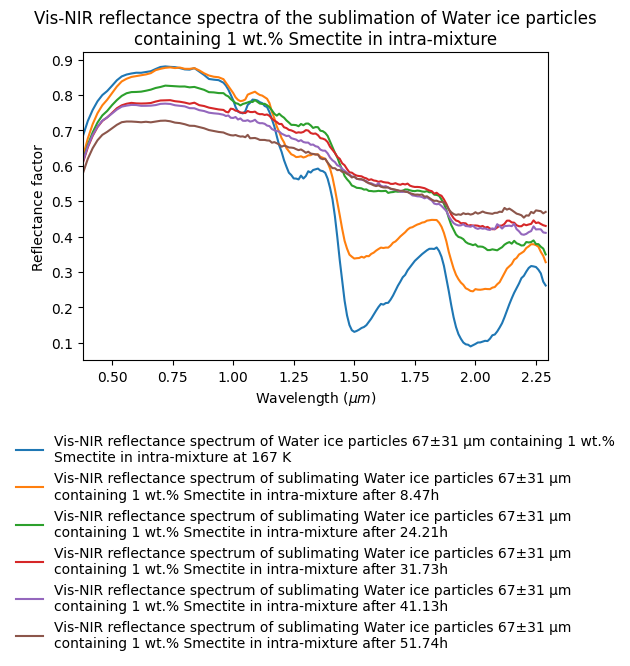

- Vis-NIR reflectance spectra of the sublimation of Water ice particles containing 1 wt.% Smectite in intra-mixture
- DOI
- 10.26302/SSHADE/EXPERIMENT_OP_20180119_001
- Data reference
- Poch, Olivier (2014): Vis-NIR reflectance spectra of the sublimation of Water ice particles containing 1 wt.% Smectite in intra-mixture. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20180119_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 58
- Variable type(s)
-
- irradiation dose
- Comments
- The reflectance spectra were averaged from the Region Of Interest (ROI) selected from the hyperspectral cube of the sample, as its water sublimates with time.
- Instrument
- SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
- Sample holder
- Aluminum sample holder, rectangular 120x60 mm with a thickness of 20mm, equipped with PT100 temperature sensors
- Standard medium
- air
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 0.38 - 0.96 0.02 0.015 #2 0.96 - 2.3 0.01 0.03
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- biconical
- Observation mode
- fixed angles
- Emergence angle
- 13.0°
- Azimuth angle
- 0.0°
- Comments
- The light beam emitted from the extremity of the fibre bundle positionned about 300 mm above the sample surface has a divergence half-angle of 12.7°. The light source incidence and azimuth angles are slightly variable from pixel to pixel.
- Observation mode
- roi averaged
- Comments
- Note to the provider: Complete the "image" observation_mode when fully implemented in SSHADE. Because SCITEAS data are hyperspectral images.
- Date begin - end
- 2014-07-30 - 2014-08-01
Versions
- Release date
- 2018-02-15 15:25:05 UTC+0000
- Version (Date)
- #1 (2018-02-15 15:25:05 UTC+0000, Updated: 2021-06-23 04:33:42 UTC+0000)
