Experiment
Vis-NIR reflectance spectra of the sublimation of Water ice particles containing 1 wt.% Smectite in intra-mixture
Spectrum
Vis-NIR reflectance spectrum of Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture at 167 K
Spectrum

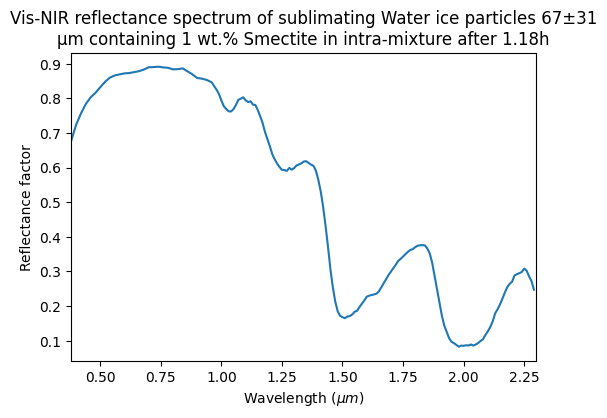

Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 1.18h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 2.3h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 2.99h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 3.67h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 4.35h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 5.03h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 5.72h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 6.41h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 7.09h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 7.78h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 8.47h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 9.17h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 9.86h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 10.54h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 14.85h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 15.54h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 19.63h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 20.31h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 21h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 21.68h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 22.36h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 23.52h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 24.21h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 24.89h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 25.58h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 26.26h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 26.95h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 27.63h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 28.31h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 29h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 29.68h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 30.36h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 31.04h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 31.73h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 32.43h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 33.13h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 33.81h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 35.59h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 36.28h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 36.97h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 37.67h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 38.36h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 39.05h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 39.74h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 40.44h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 41.13h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 41.82h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 42.51h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 43.2h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 43.9h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 47.59h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 47.28h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 48.97h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 49.66h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 50.36h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 51.03h
Spectrum
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 51.74h
- Instrument
- SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.38 - 0.96 ${\mu}m$ ; 0.96 - 2.3 ${\mu}m$
- Observation geometry
- biconical : e=13.0° ; az=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- Sublimation mantle of Smectite on Water ice and Smectite intra-mixture particles 67±31 μm
- Origin
- laboratory
- Texture
- other, loose granular
- Temperature
- 173.0 $K$
- Irradiated by
-
- MIR photons
References
- Data reference
- Poch, Olivier (2014): Vis-NIR reflectance spectra of the sublimation of Water ice particles containing 1 wt.% Smectite in intra-mixture. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20180119_001
- Publications
