VIS-NIR reflectance spectra of binary mixtures of CO2 frost (10-100 µm) and spherical water ice particles (67 µm average diameter) | BYPASS

Experiment

Title: VIS-NIR reflectance spectra of binary mixtures of CO2 frost (10-100 µm) and spherical water ice particles (67 µm average diameter)

DOI

10.26302/SSHADE/EXPERIMENT_ZY_20180208_000

Data reference

Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of binary mixtures of CO2 frost (10-100 µm) and spherical water ice particles (67 µm average diameter). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180208_000

Publications

Yoldi et al., 2022, Icarus, 386, 115116

Owner

Database(s)

BYPASS

Experimentalists

Zuriñe Yoldi

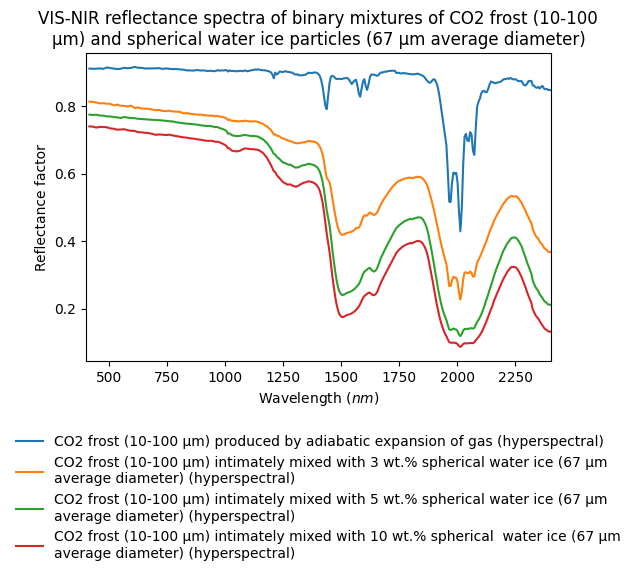

Spectra preview

Experiment type

Type(s): laboratory measurement
Description: CO2 frost (10-100 µm) produced by adiabatic expansion of gas is mixed with variable amounts of water ice particles (spherical, type SPIPA-B, 67 µm average diameter) and the reflectance measured. Vis multispectral + NIR low resolution and Vis-NIR high resolution spectra.
Number of spectra: 8

Variable parameters

Variable type(s)

sample composition
spectrum type

Location

Laboratory: Space Research & Planetary Sciences Division of the University of Bern (WP Unibe)

Instrument #1

Instrument: SCITEAS Imaging System - hyperspectral imaging system Vis-NIR

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

Vis, NIR

Valid spectral range(s)

	Min - Max ($nm$)	Sampling ($nm$)	Resolution ($nm$)
#1	400.0 - 940.0	15.0	6.5
#2	946.0 - 1294.0	6.0	6.5
#3	1300.0 - 2404.0	6.0	13.0

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).

Observation geometry: biconical
Observation mode: fixed angles
Incidence angle: 20.0°
Emergence angle: 30.0°
Azimuth angle: 180.0°
Phase angle: 50.0°

Spatial parameters

Observation mode: roi averaged
Spots number: 4

History

Date begin - end: 2018-02-08 - 2018-02-08

Versions

Release date: 2023-04-28 13:51:15 UTC+0000
Version (Date): #1 (2023-04-28 13:51:15 UTC+0000, Updated: 2023-05-05 15:23:30 UTC+0000)

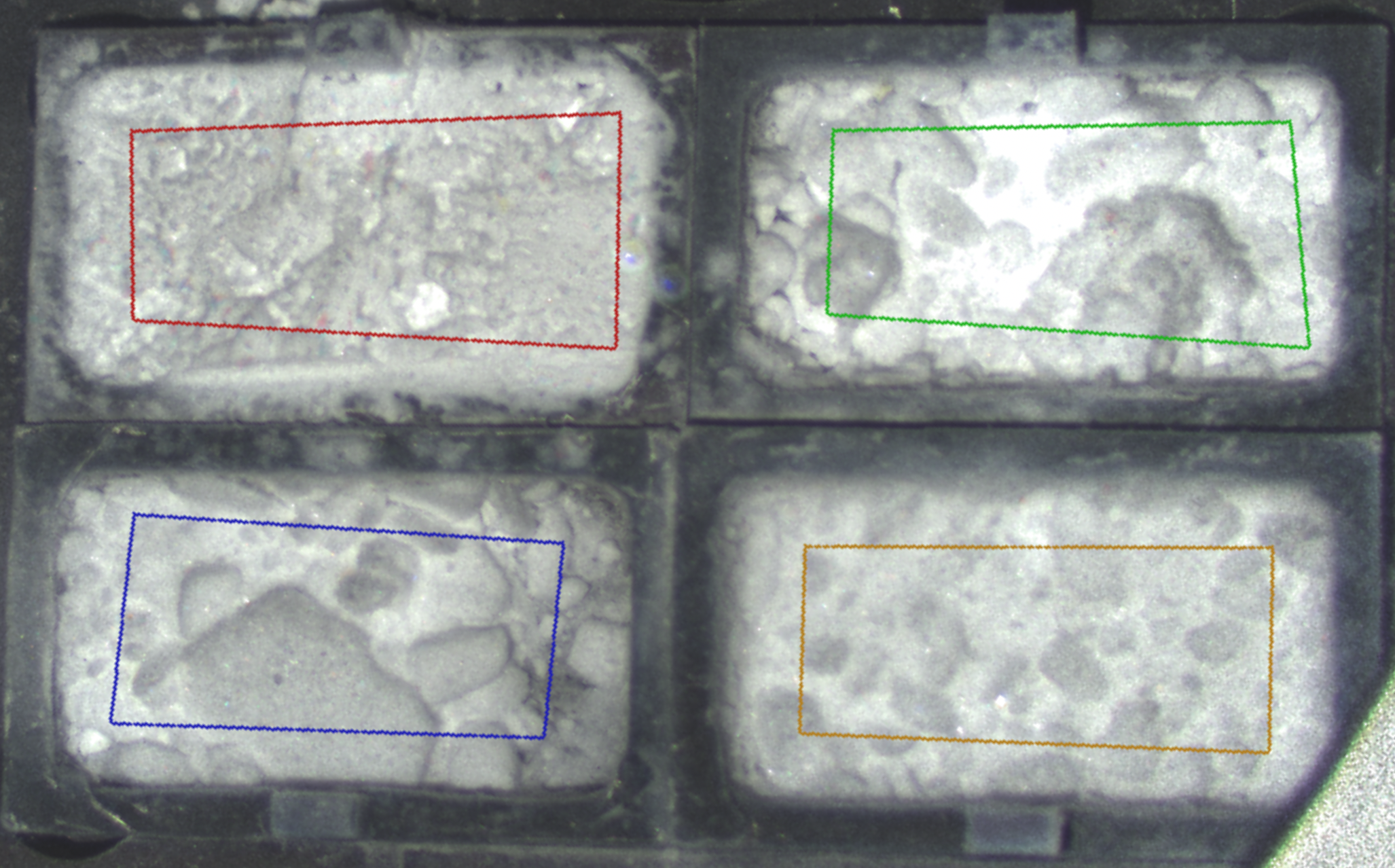

CO2 frost (10-100 µm) produced by adiabatic expansion of gas is mixed with variable amounts of water ice particles (spherical, type SPIPA-B, 67 µm average diameter) and the reflectance measured. The reflectance spectra are averaged over Regions Of Interest (ROIs, colored rectangles).
