Pigment Roussillon (PIG_0173_A_602), Red Ochre powder (grains sup. 160µm, d=1.46) | PIG | SSHADE

Sample

Name: Pigment Roussillon (PIG_0173_A_602), Red Ochre powder (grains sup. 160µm, d=1.46)

Owner of sample

Database

PIG

Experimentalists

Origin of sample

Date: 2019-09-26
Provider: Pigmenthothèque - EDYTEM

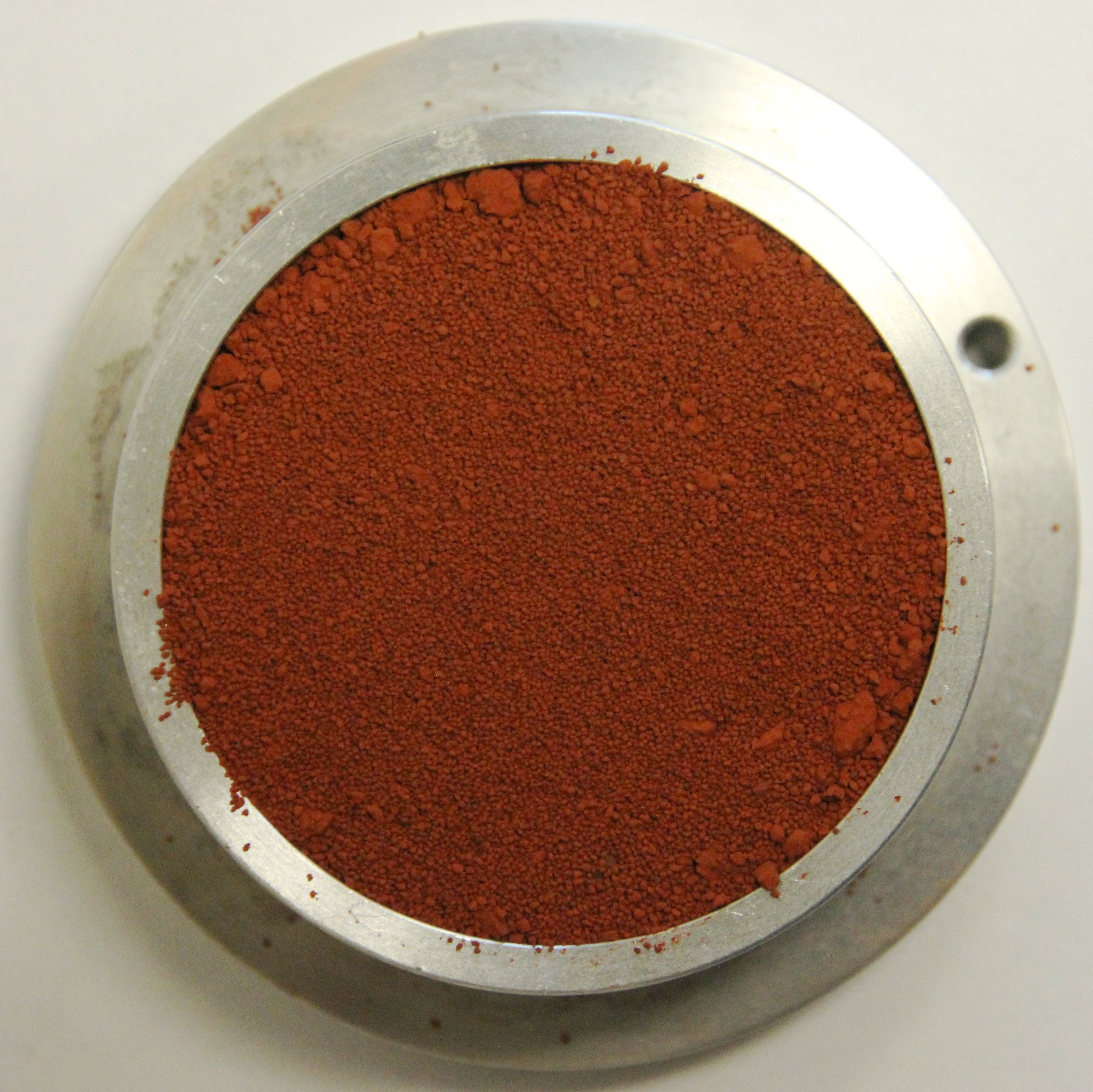

Pigment Roussillon (PIG_0173_A_602) grains > 160 µm, d=1.46, in sample holder

Physical characteristics

Thickness: 5.0 $mm$
Diameter: 20.0 $mm$
Volume: 1145.0 $mm^3$
Surface roughness: slightly tamped and smoothed
Substrate material: black anodized aluminium for Visible and raw aluminium for the NIR
Comments: diameter / thichness is 20 mm / 5 mm (2.315g)

Sample environment: Temperature

Temperature: 298.7 $\pm$ 0.5 $K$
Temperature max: 300.0 $K$

Sample environment: Fluid

Type: ambient air
Fluid temperature: 298.7 $K$
Fluid pressure: 1.0 $bar$
Comments: room conditions

Layers in sample

Number

1

Layers

Pigment Roussillon - grains sup. 160µm, d=1.46
