- Title

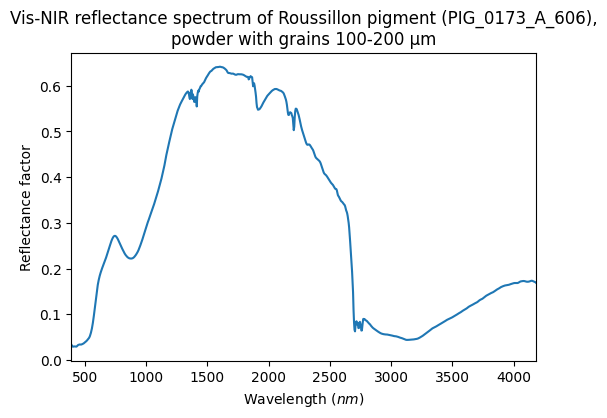

- Vis-NIR reflectance spectrum of Roussillon pigment (PIG_0173_A_606), powder with grains 100-200 µm
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2021-04-05 11:24:45 UTC+0000)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 390.0 - 598.0 $nm$ ; 602.0 - 1598.0 $nm$ ; 1602.0 - 2834.0 $nm$ ; 2842.0 - 4186.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Roussillon (PIG_0173_A_606), Red Ochre powder (grains 100-200µm)
- Texture
- loose fine grained
- Thickness
- 4.5 $\pm$ 0.1 $mm$
- Temperature
- 295.0 $\pm$ 3.0 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Roussillon pigments (PIG_0173_A): raw blocks, powders with different grain sizes and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20191012_400
- Publications
